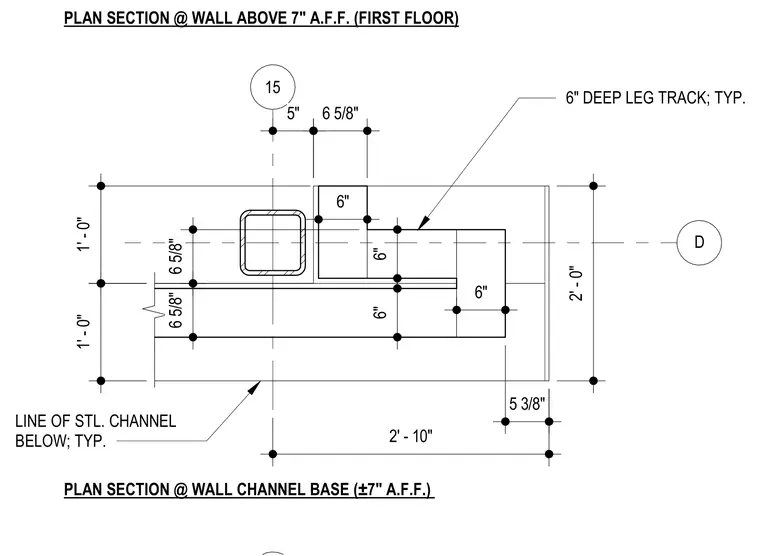

This plan detail shows a six-inch deep leg track framing assembly aligning with a structural steel channel below at seven inches above the finished floor. Dimensions indicate spacing for the wall framing members relative to a central column or structural line.
D 15 5 3/8" 6 5/8" 6 5/8" PLAN SECTION @ WALL CHANNEL BASE (±7" A.F.F.) 2' - 10" 2' - 0" 1' - 0" 1' - 0" 6 5/8" 6" DEEP LEG TRACK; TYP. LINE OF STL. CHANNEL BELOW; TYP. PLAN SECTION @ WALL ABOVE 7" A.F.F. (FIRST FLOOR) 5" 6" 6" 6" 6"
