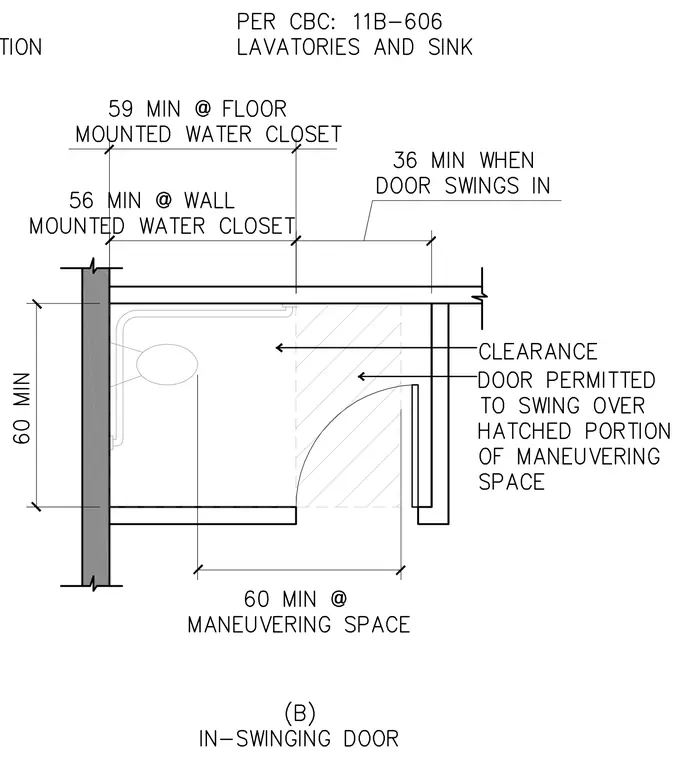

An accessible toilet compartment plan details the required clearance dimensions for a water closet with an in-swinging door. The layout specifies a minimum maneuvering space width of sixty inches and a depth of fifty-nine inches for floor-mounted water closets, or fifty-six inches for wall-mounted water closets. An entry door swing is permitted to overlap the hatched portion of the maneuvering space, provided a minimum thirty-six-inch clearance is maintained when the door swings inward.
