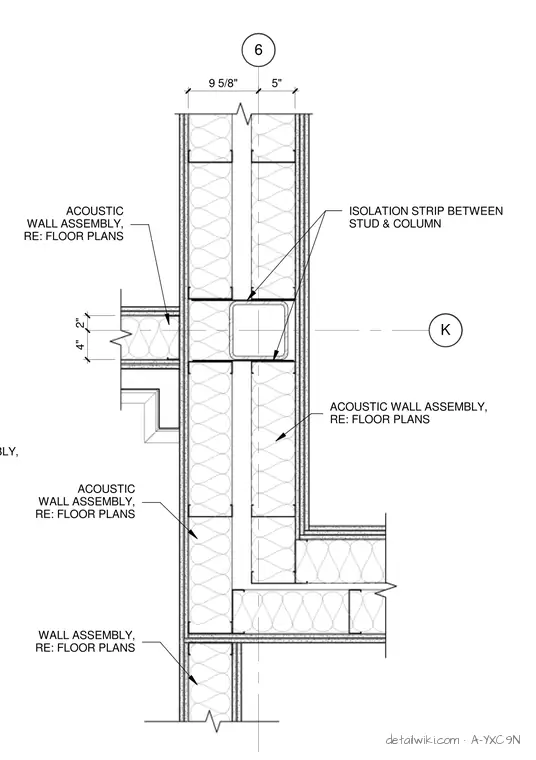

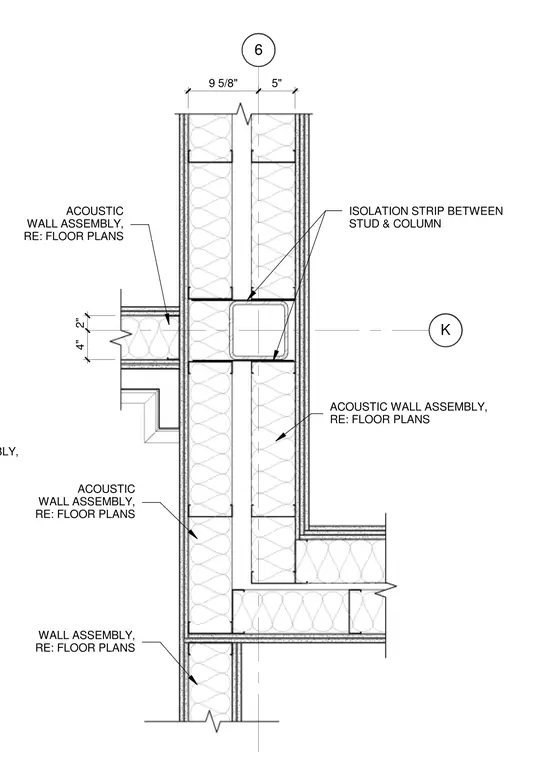

A-YXC9N — Plan Detail Room 130

Architectural · A-YXC9N

Plan Detail Room 130

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Elements

Columns Floors / Slabs Insulation Partitions Walls

Text on the drawing

ACOUSTIC WALL ASSEMBLY, 6 K ACOUSTIC WALL ASSEMBLY, RE: FLOOR PLANS ACOUSTIC WALL ASSEMBLY, RE: FLOOR PLANS 4" 2" 9 5/8" 5" ISOLATION STRIP BETWEEN STUD & COLUMN WALL ASSEMBLY, RE: FLOOR PLANS ACOUSTIC WALL ASSEMBLY, RE: FLOOR PLANS

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
