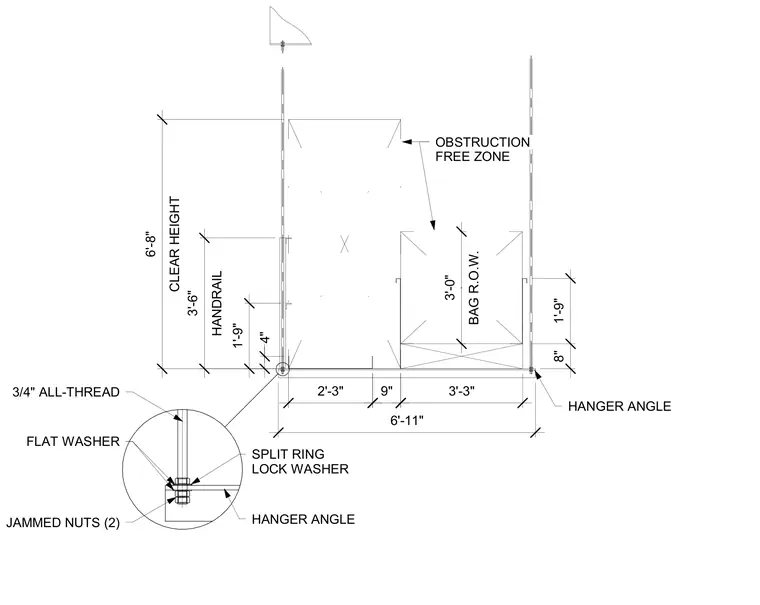

This assembly details a suspended conveyor system with an integrated catwalk, handrail, and obstruction-free zone. The structural support relies on three-quarter-inch all-thread rods secured to hanger angles with flat washers, split ring lock washers, and two jammed nuts. The clear height is maintained at six feet eight inches, with the handrail positioned at three feet six inches above the floor level. The overall width of the assembly measures six feet eleven inches, incorporating specific clearances for bag routing and operational clearance.
OBSTRUCTION FREE ZONE HANGER ANGLE CLEAR HEIGHT 6'-8" HANDRAIL 3'-6" 1'-9" 4" 2'-3" 9" 3'-3" 6'-11" 8" 1'-9" BAG R.O.W. 3'-0" 3/4" ALL-THREAD FLAT WASHER SPLIT RING LOCK WASHER HANGER ANGLE JAMMED NUTS (2)
