Cold-formed steel header studs are framed between top and bottom runners and tied into vertical post studs and side studs spaced at sixteen inches on center. The header assembly connects to the post studs using straight clips fastened with two number ten self-drilling Teks screws per connection in a side bolt pattern. The maximum span dimension is indicated at four feet zero inches.

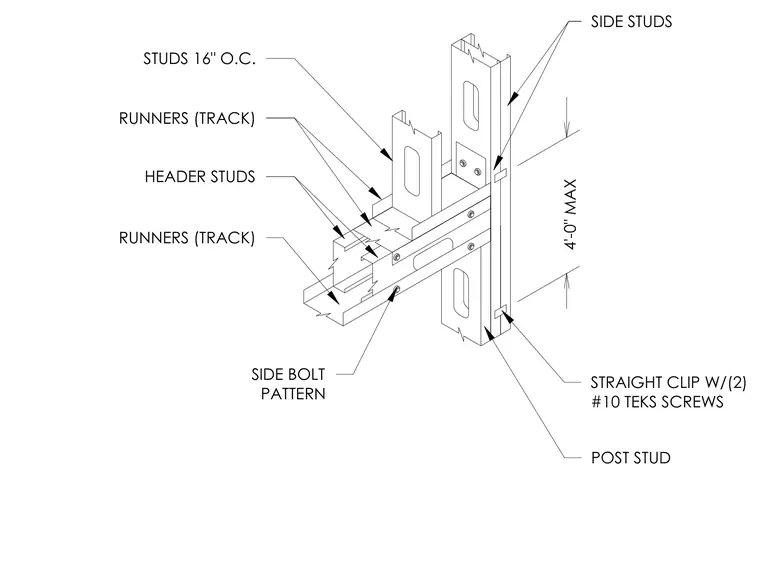

STRAIGHT CLIP W/(2) #10 TEKS SCREWS 4'-0" MAX SIDE BOLT PATTERN POST STUD SIDE STUDS RUNNERS (TRACK) HEADER STUDS RUNNERS (TRACK) STUDS 16" O.C.
