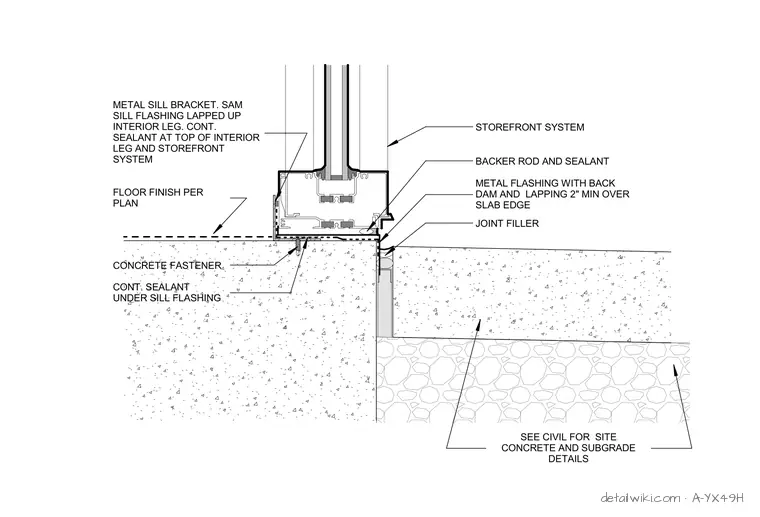

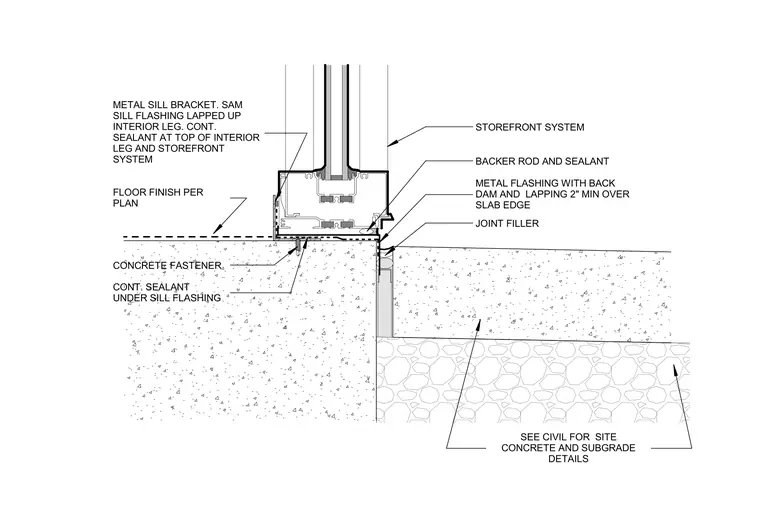

The storefront system sits atop a concrete slab edge with an intervening metal sill flashing featuring a back dam and minimum two-inch lap. Continuous sealant is applied under the sill flashing and at the top of the interior leg. A metal sill bracket secures the assembly using concrete fasteners. Joint filler, backer rod, and sealant seal the exterior joint at the slab edge.
SEE CIVIL FOR SITE CONCRETE AND SUBGRADE DETAILS STOREFRONT SYSTEM JOINT FILLER BACKER ROD AND SEALANT METAL FLASHING WITH BACK DAM AND LAPPING 2" MIN OVER SLAB EDGE CONT. SEALANT UNDER SILL FLASHING FLOOR FINISH PER PLAN METAL SILL BRACKET. SAM SILL FLASHING LAPPED UP INTERIOR LEG. CONT. SEALANT AT TOP OF INTERIOR LEG AND STOREFRONT SYSTEM CONCRETE FASTENER
