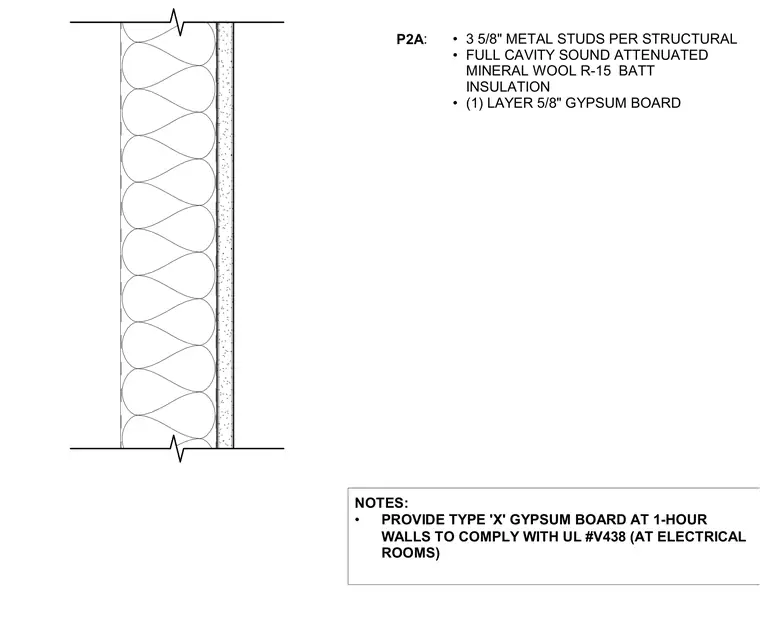

This wall furring assembly consists of 3 5/8-inch cold-formed metal studs sized per structural requirements. The cavity is fully filled with sound-attenuated mineral wool R-15 batt insulation. One layer of 5/8-inch gypsum board is applied to the interior face. Type X gypsum board is required at 1-hour rated walls to comply with UL assembly number V438 specifically at electrical rooms.
P2A : • 3 5/8" METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-15 BATT INSULATION • (1) LAYER 5/8" GYPSUM BOARD NOTES: • PROVIDE TYPE 'X' GYPSUM BOARD AT 1-HOUR WALLS TO COMPLY WITH UL #V438 (AT ELECTRICAL ROOMS)
