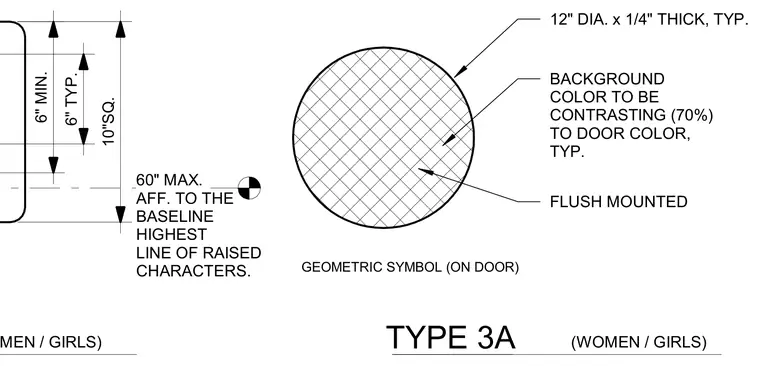

This architectural detail shows the mounting requirements for a type 3A women or girls geometric door symbol. The circular sign is twelve inches in diameter and one-quarter inch thick, flush mounted directly to the door surface. The background color must provide a seventy percent contrast to the door color. The baseline of the highest line of raised characters is positioned at a maximum of sixty inches above the finished floor.
TYPE 3A (WOMEN / GIRLS) 6" TYP. 10"SQ. 6" MIN. 60" MAX. AFF. TO THE BASELINE HIGHEST LINE OF RAISED CHARACTERS. 12" DIA. x 1/4" THICK, TYP. BACKGROUND COLOR TO BE CONTRASTING (70%) TO DOOR COLOR, TYP. (WOMEN / GIRLS) GEOMETRIC SYMBOL (ON DOOR) FLUSH MOUNTED
