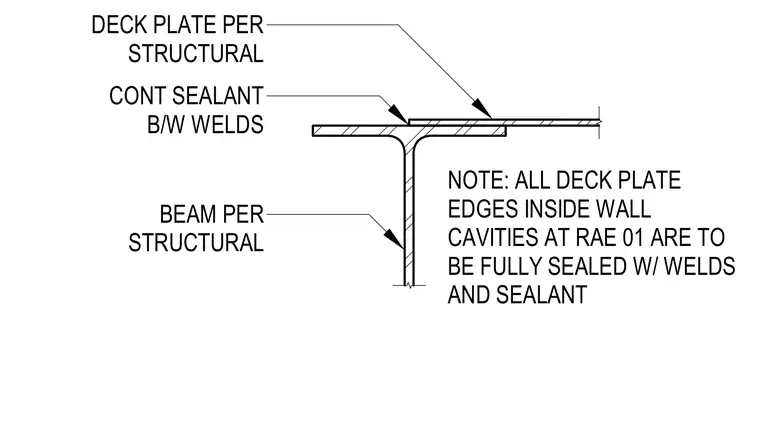

A steel deck plate bears directly on the top flange of a structural steel beam sized per structural drawings. Continuous sealant is applied between the welds joining the deck plate to the supporting beam. All deck plate edges inside wall cavities at RAE 01 are fully sealed with welds and sealant.
BEAM PER STRUCTURAL DECK PLATE PER STRUCTURAL CONT SEALANT B/W WELDS NOTE: ALL DECK PLATE EDGES INSIDE WALL CAVITIES AT RAE 01 ARE TO BE FULLY SEALED W/ WELDS AND SEALANT
