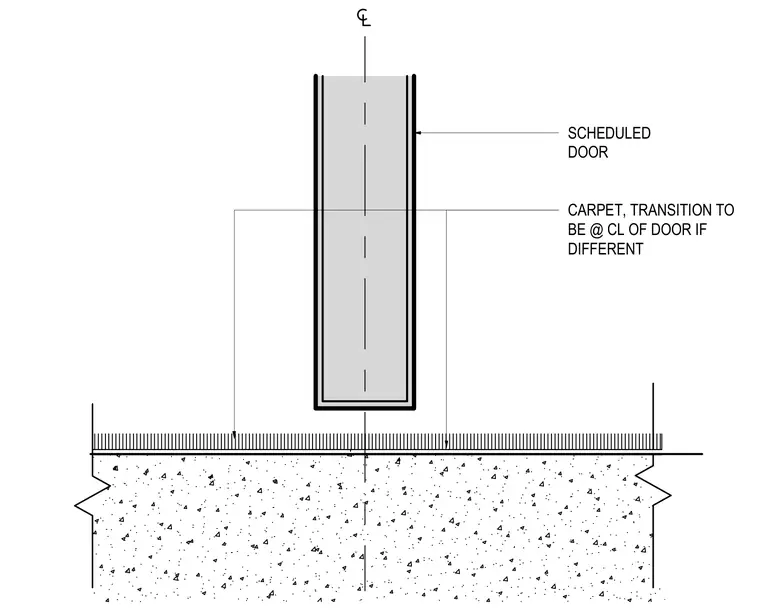

Carpet flooring meets at a transition joint aligned with the centerline of the scheduled door above. The carpet transition occurs at the centerline of the door unless a different location is specified on the finish schedule. Flooring rests directly over the structural concrete slab.
