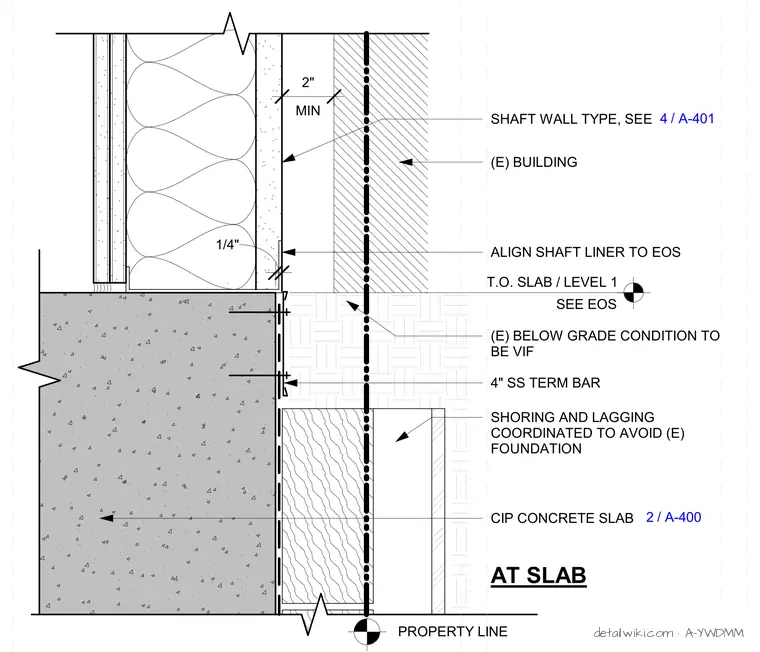

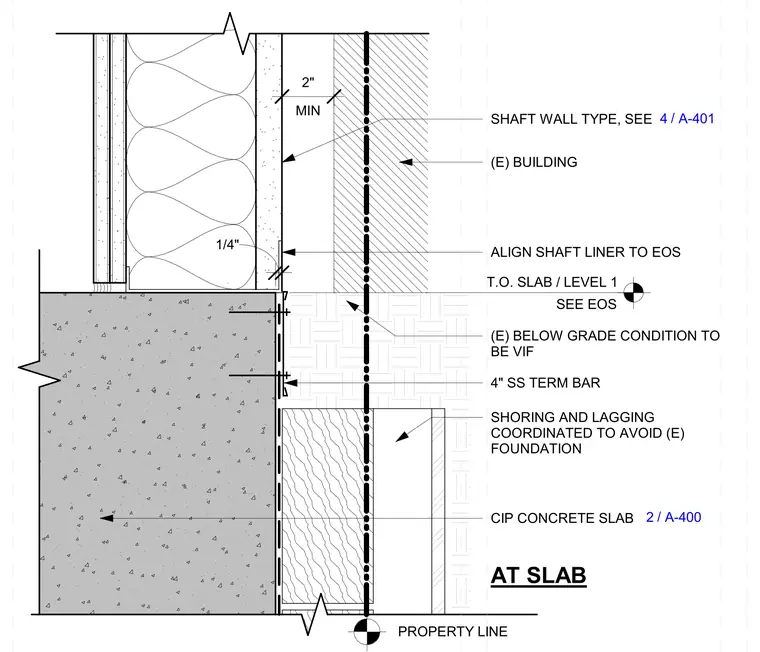

This seismic joint detail connects a cast-in-place concrete slab at Level 1 to an existing building wall with a minimum 2-inch clear separation. A shaft wall assembly aligns with the expansion joint offset, fastened with a 4-inch stainless steel termination bar. The below-grade condition is designated as verify in field, with shoring and lagging coordinated to avoid the existing foundation.
PROPERTY LINE T.O. SLAB / LEVEL 1 SEE EOS SHAFT WALL TYPE, SEE / 4 A-401 CIP CONCRETE SLAB / 2 A-400 ALIGN SHAFT LINER TO EOS (E) BUILDING MIN 2" AT SLAB 1/4" 4" SS TERM BAR (E) BELOW GRADE CONDITION TO BE VIF SHORING AND LAGGING COORDINATED TO AVOID (E) FOUNDATION
