Holding Perimeter Walls

Elements

Walls Partitions Ceilings Floors / Slabs

About this detail

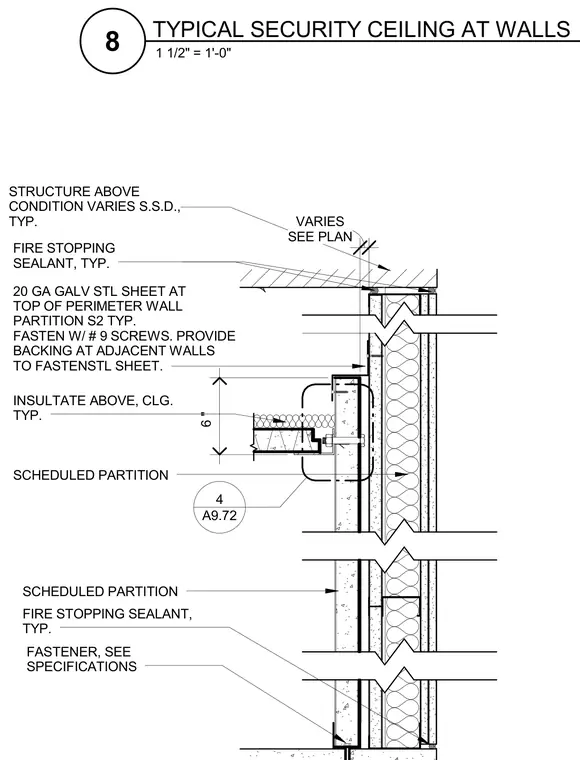

A twenty-gauge galvanized steel sheet is installed at the top of the perimeter wall partition, secured with number nine screws with required backing provided at adjacent walls. Fire-stopping sealant is applied at joints, and insulation is placed above the ceiling. The condition at the structure above varies as sized per plan. Scheduled partitions connect with appropriate fasteners per specifications.
