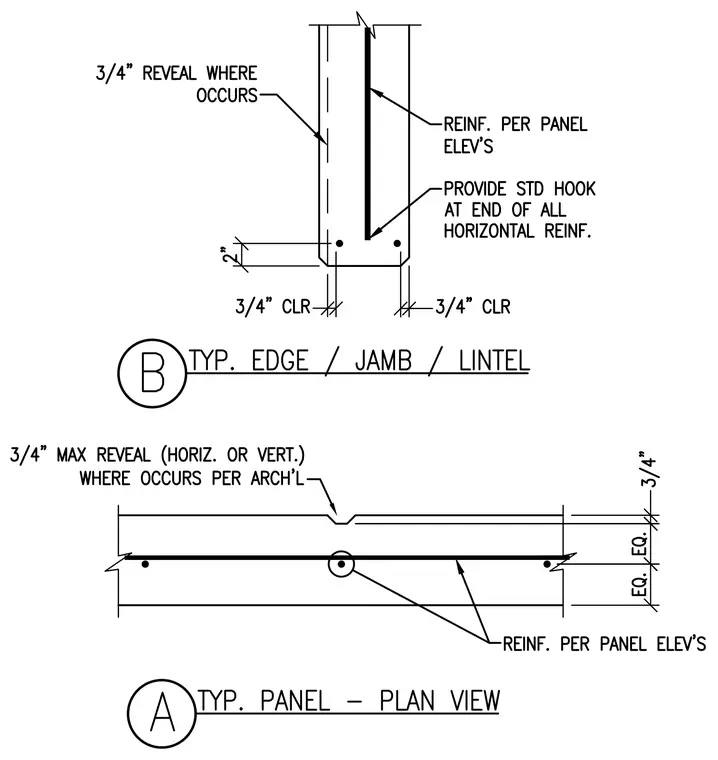

Precast concrete panel details show standard edge, jamb, and lintel configurations with a three-quarter inch reveal where specified. Reinforcement is provided per panel elevations, maintaining a three-quarter inch clearance and standard hooks at the ends of all horizontal reinforcing bars. A three-quarter inch maximum horizontal or vertical reveal is coordinated per architectural requirements.
