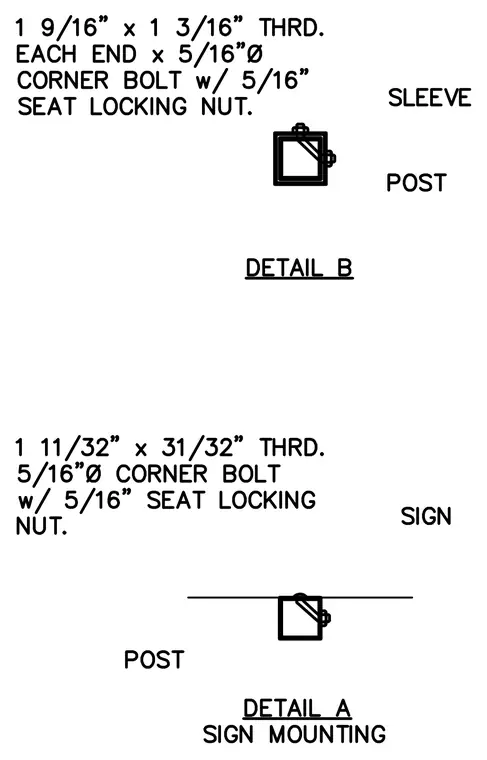

Sign post and sleeve connections secured with threaded corner bolts and seat locking nuts. Detail A provides a sign mounting connection with a 1 11/32 inch by 31/32 inch threaded 5/16 inch diameter corner bolt and matching seat locking nut. Detail B provides a sleeve and post connection using a 1 9/16 inch by 1 3/16 inch threaded each end by 5/16 inch diameter corner bolt with a 5/16 inch seat locking nut.
