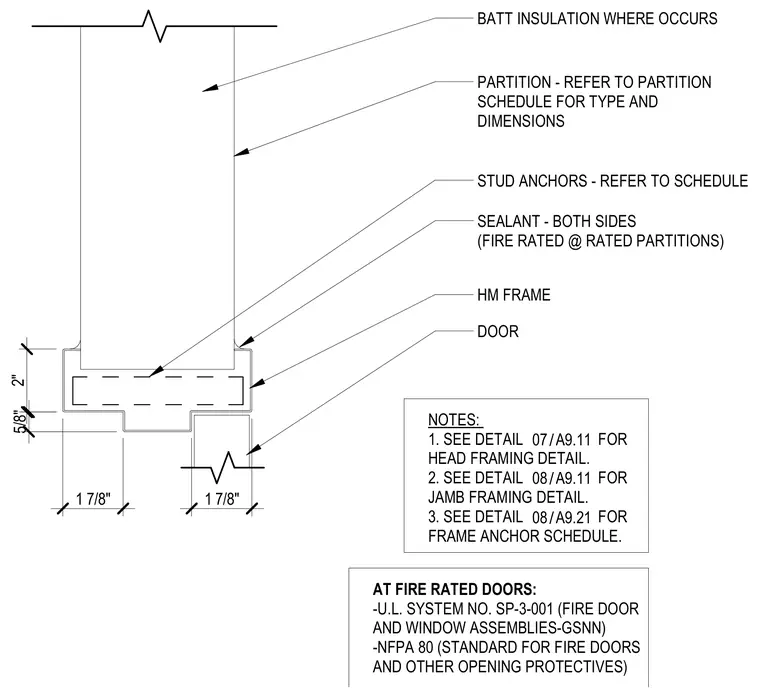

This architectural detail shows a hollow metal frame and door assembly mounted to a partition wall. Batt insulation is placed within the partition cavity where specified by the schedule. The hollow metal frame secures to the wall framing using stud anchors. Continuous sealant is applied to both sides of the frame, with fire-rated sealant used at rated partitions. Additional notes reference specific head framing, jamb framing, and frame anchor schedules, as well as UL system requirements for fire-rated doors.
BATT INSULATION WHERE OCCURS PARTITION - REFER TO PARTITION SCHEDULE FOR TYPE AND DIMENSIONS SEALANT - BOTH SIDES (FIRE RATED @ RATED PARTITIONS) HM FRAME DOOR NOTES: 1. SEE DETAIL FOR HEAD FRAMING DETAIL. 2. SEE DETAIL FOR JAMB FRAMING DETAIL. 3. SEE DETAIL FOR FRAME ANCHOR SCHEDULE. 2" 5/8" 1 7/8" 1 7/8" STUD ANCHORS - REFER TO SCHEDULE / 07 A9.11 / 08 A9.11 / 08 A9.21 AT FIRE RATED DOORS: -U.L. SYSTEM NO. SP-3-001 (FIRE DOOR AND WINDOW ASSEMBLIES-GSNN) -NFPA 80 (STANDARD FOR FIRE DOORS AND OTHER OPENING PROTECTIVES)
