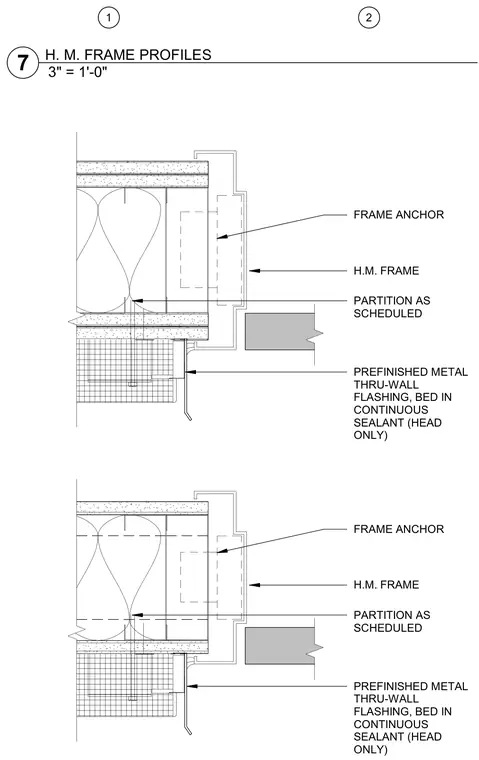

A hollow metal frame profile occurs at a stair jamb and head condition. The assembly features a partition constructed as scheduled, secured with frame anchors to the hollow metal frame. A prefinished metal thru-wall flashing is bedded in continuous sealant at the head only.
1 2 PREFINISHED METAL THRU-WALL FLASHING, BED IN CONTINUOUS SEALANT (HEAD ONLY) PARTITION AS SCHEDULED H.M. FRAME FRAME ANCHOR PREFINISHED METAL THRU-WALL FLASHING, BED IN CONTINUOUS SEALANT (HEAD ONLY) PARTITION AS SCHEDULED H.M. FRAME FRAME ANCHOR 3" = 1'-0" 7 H. M. FRAME PROFILES
