A six-inch diameter galvanized steel pipe is filled with concrete and extends three feet eight inches above the finished surface. The pipe embeds two feet six inches into an 18-inch diameter concrete footing that rests on a compacted gravel base. The surrounding site paving consists of asphalt or concrete over a compacted gravel sub-base. The exposed top of the steel pipe is rounded and ground smooth.

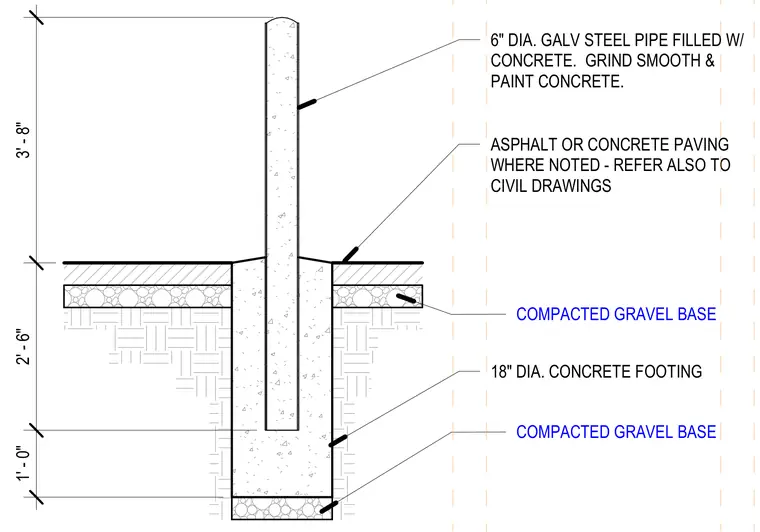

3' - 8" 2' - 6" 1' - 0" 18" DIA. CONCRETE FOOTING ASPHALT OR CONCRETE PAVING WHERE NOTED - REFER ALSO TO CIVIL DRAWINGS 6" DIA. GALV STEEL PIPE FILLED W/ CONCRETE. GRIND SMOOTH & PAINT CONCRETE. COMPACTED GRAVEL BASE COMPACTED GRAVEL BASE
