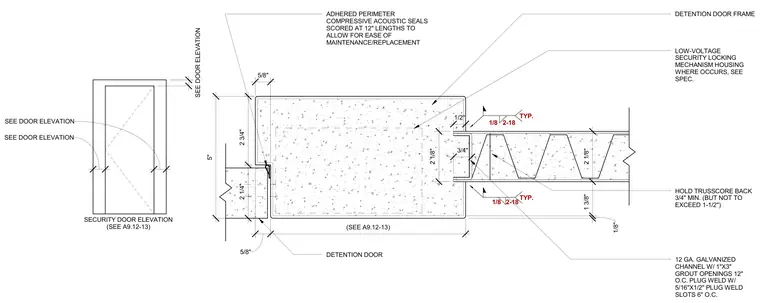

A security door jamb assembly features a detention door frame constructed from twelve-gauge galvanized channel with one-inch by three-inch grout openings spaced twelve inches on center. The frame is secured using plug welds within five-sixteenths-inch by one-half-inch plug weld slots spaced six inches on center, with a typical one-eighth-inch weld size. Adhered perimeter compressive acoustic seals are scored at twelve-inch lengths to allow for ease of maintenance and replacement. A low-voltage security locking mechanism housing is provided where required per specifications. The adjacent core is held back three-quarters of an inch minimum, not to exceed one and one-half inches.
SECURITY DOOR ELEVATION (SEE A9.12-13) SEE DOOR ELEVATION SEE DOOR ELEVATION SEE DOOR ELEVATION 2 1/8" 3/4" 2 1/8" 1 3/8" 1/8" TYP. 1/8 2-18 TYP. 1/8 2-18 5/8" (SEE A9.12-13) 2 1/4" 2 3/4" 5" 5/8" 1/2" ADHERED PERIMETER COMPRESSIVE ACOUSTIC SEALS SCORED AT 12" LENGTHS TO ALLOW FOR EASE OF MAINTENANCE/REPLACEMENT LOW-VOLTAGE SECURITY LOCKING MECHANISM HOUSING WHERE OCCURS, SEE SPEC. DETENTION DOOR FRAME 12 GA. GALVANIZED CHANNEL W/ 1"X3" GROUT OPENINGS 12" O.C. PLUG WELD W/ 5/16"X1/2" PLUG WELD SLOTS 6" O.C. HOLD TRUSSCORE BACK 3/4" MIN. (BUT NOT TO EXCEED 1-1/2") DETENTION DOOR
