Architectural · A-YV4PJ

Section at Terrace Frame Head

Materials

Elements

About this detail

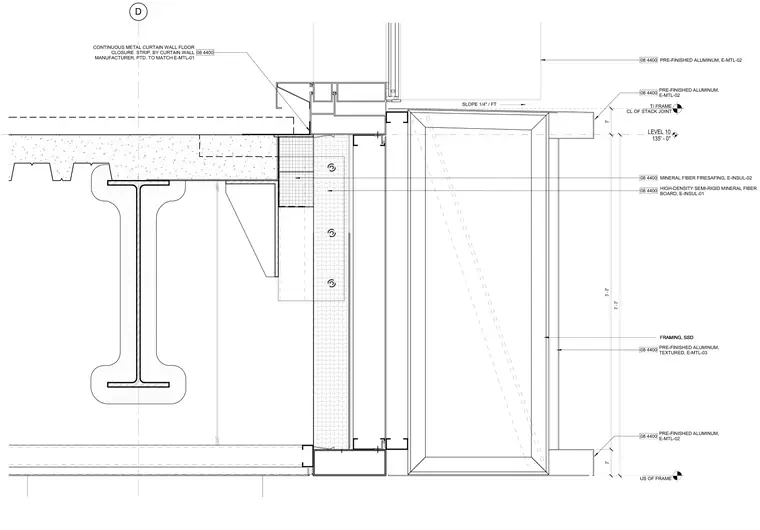

An aluminum curtain wall frame head junctions against an elevated floor slab and steel beam at the terrace. The assembly features a pre-finished aluminum framing head with a 1/4 inch per foot slope at the terrace level, tied into a continuous metal curtain wall floor closure strip. Mineral fiber firesafing insulation is installed within the cavity alongside high-density semi-rigid mineral fiber board insulation to meet thermal and fire-resistance requirements. The structural support includes a steel beam supporting the concrete floor slab with embedded framing elements at Level 10.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
