A hollow structural section column with a minimum size of 4 by 4 by 0.188 inches serves as the core structural support. Minimum 41mm or 1 5/8-inch cold-formed metal studs frame around the steel tube shape to create the furred enclosure. Two layers of 16mm or 5/8-inch Type X gypsum board are applied vertically without horizontal joints around the framing. Corner beads finish the exterior gypsum board corners.

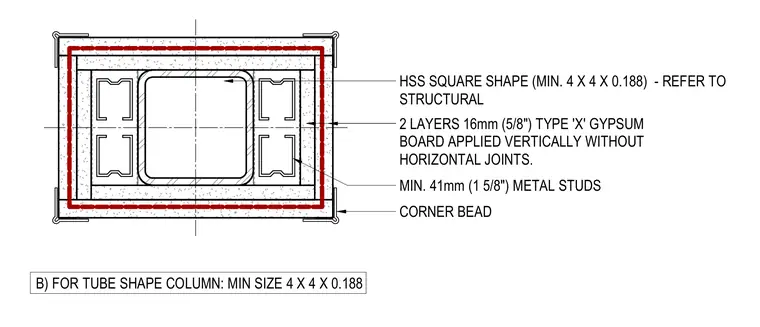

MIN. 41mm (1 5/8") METAL STUDS 2 LAYERS 16mm (5/8") TYPE 'X' GYPSUM BOARD APPLIED VERTICALLY WITHOUT HORIZONTAL JOINTS. HSS SQUARE SHAPE (MIN. 4 X 4 X 0.188) - REFER TO STRUCTURAL B) FOR TUBE SHAPE COLUMN: MIN SIZE 4 X 4 X 0.188 CORNER BEAD
