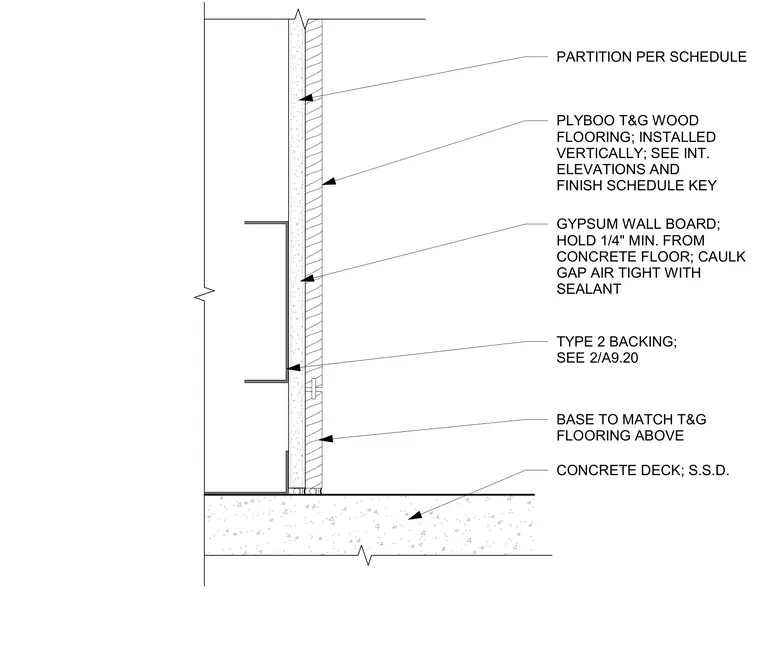

Plyboo tongue-and-groove wood flooring is installed vertically on the wall finish, extending down to a matching wood base at the floor. The gypsum wall board partition is supported by framing with type 2 backing. A one-quarter-inch minimum gap is maintained between the gypsum board and the concrete floor, sealed airtight with sealant. The assembly terminates at a concrete deck with specified backing and finish schedule key references.
PARTITION PER SCHEDULE GYPSUM WALL BOARD; HOLD 1/4" MIN. FROM CONCRETE FLOOR; CAULK GAP AIR TIGHT WITH SEALANT CONCRETE DECK; S.S.D. BASE TO MATCH T&G FLOORING ABOVE PLYBOO T&G WOOD FLOORING; INSTALLED VERTICALLY; SEE INT. ELEVATIONS AND FINISH SCHEDULE KEY TYPE 2 BACKING; SEE 2/A9.20
