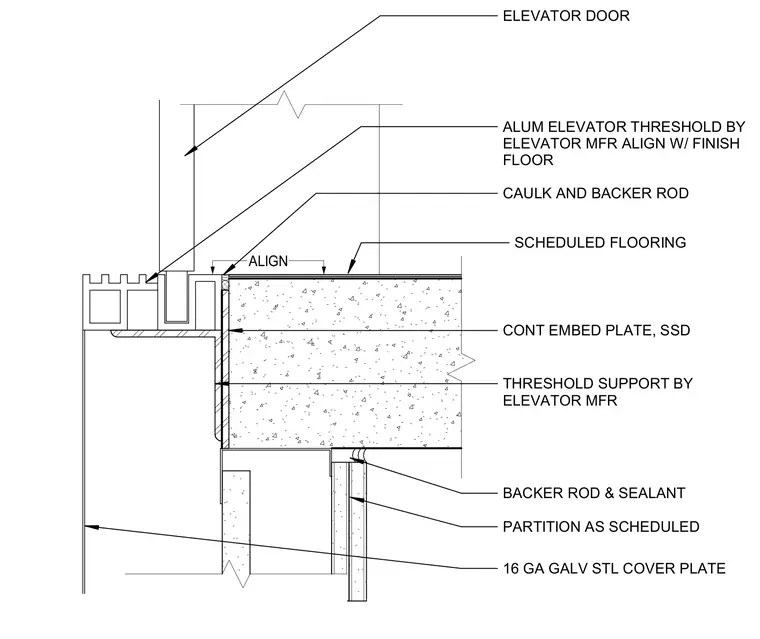

An aluminum elevator threshold aligns with the scheduled finish floor, supported by a threshold support provided by the elevator manufacturer. The assembly anchors to a continuous stainless steel embed plate set into the concrete slab edge. A sixteen gauge galvanized steel cover plate is installed below the slab, sealed with backer rod and sealant against the partition as scheduled.
ELEVATOR DOOR ALUM ELEVATOR THRESHOLD BY ELEVATOR MFR ALIGN W/ FINISH FLOOR CONT EMBED PLATE, SSD THRESHOLD SUPPORT BY ELEVATOR MFR BACKER ROD & SEALANT PARTITION AS SCHEDULED 16 GA GALV STL COVER PLATE CAULK AND BACKER ROD SCHEDULED FLOORING ALIGN
