Architectural · A-YTEG5

Storefront Jamb and Living Wall Connection at HSS Column

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Storefronts Waterproofing / Flashing Insulation Anchors / Embeds

Connections

HSS Connection

About this detail

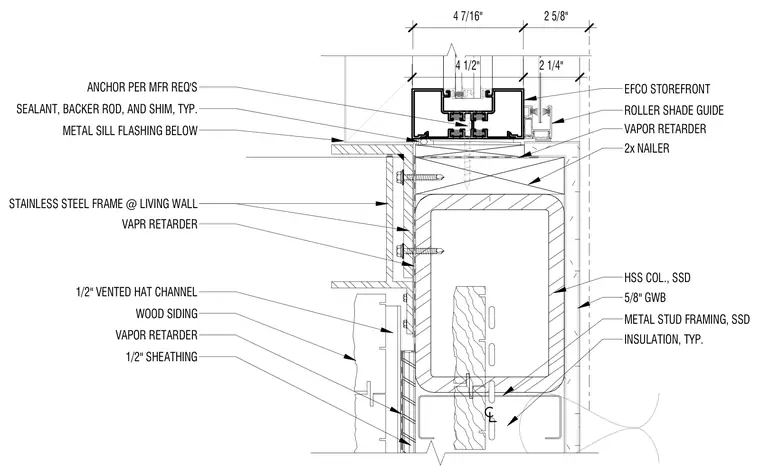

A storefront jamb assembly interfaces with an HSS column, structural steel framing, and a living wall integration. An Efco storefront frame is mounted above a wood 2x nailer supported by the HSS column, with a roller shade guide integrated alongside. A stainless steel frame for the living wall fastens back to the HSS column over a vapor retarder layer. Exterior wood siding attaches to a one-half inch vented hat channel over sheathing and vapor retarder, while interior finishes consist of five-eighths inch gypsum board over typical metal stud framing with insulation. Metal sill flashing, sealant, backer rods, and shims provide weatherproofing at the storefront junction.
