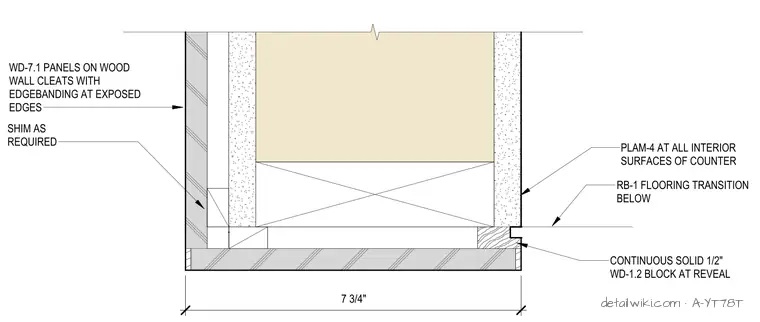

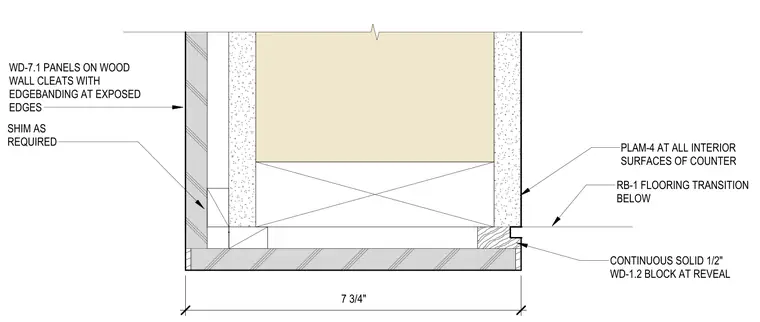

The counter leg assembly consists of WD-7.1 panels mounted on wood wall cleats, with shims provided as required for alignment. The interior surfaces of the counter are finished with PLAM-4 plastic laminate. A continuous solid one-half inch WD-1.2 wood block is installed at the base to create a reveal, which aligns with the RB-1 flooring transition below. The total width of the assembly is seven and three-quarter inches.
