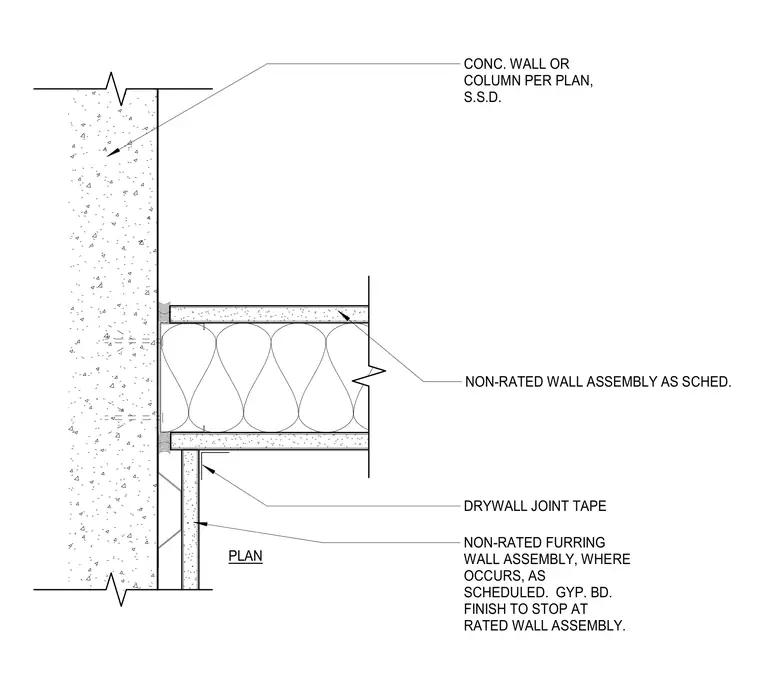

A non-rated partition wall assembly intersects a concrete wall or column as detailed on plan. The gypsum board finish stops at the rated wall assembly where required. A drywall joint tape is applied at the wall transition. Furring wall assemblies are installed as scheduled per plan.
CONC. WALL OR COLUMN PER PLAN, S.S.D. DRYWALL JOINT TAPE NON-RATED FURRING WALL ASSEMBLY, WHERE OCCURS, AS SCHEDULED. GYP. BD. FINISH TO STOP AT RATED WALL ASSEMBLY. PLAN NON-RATED WALL ASSEMBLY AS SCHED.
