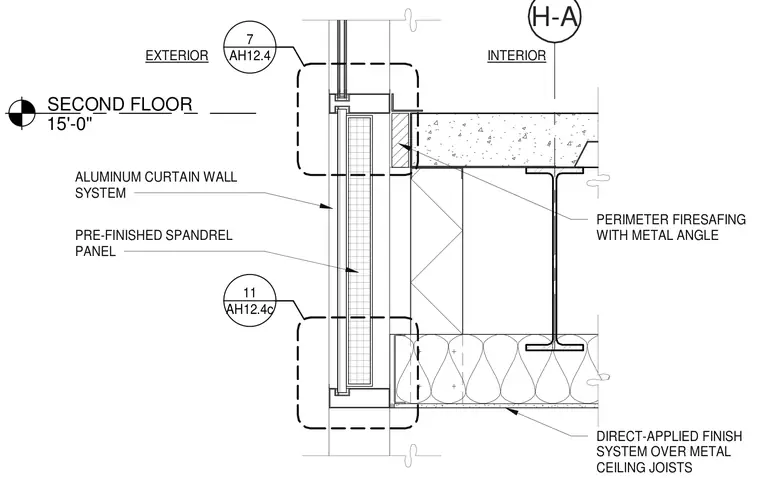

An aluminum curtain wall system with a pre-finished spandrel panel interfaces with the second-floor slab edge at elevation fifteen feet zero inches. Perimeter firesafing with a metal angle seals the slab edge behind the curtain wall framing. Metal ceiling joists support a direct-applied finish system below the floor structure.
H-A SECOND FLOOR 15'-0" EXTERIOR INTERIOR PERIMETER FIRESAFING WITH METAL ANGLE DIRECT-APPLIED FINISH SYSTEM OVER METAL CEILING JOISTS ALUMINUM CURTAIN WALL SYSTEM PRE-FINISHED SPANDREL PANEL AH12.4 7 AH12.4c 11
