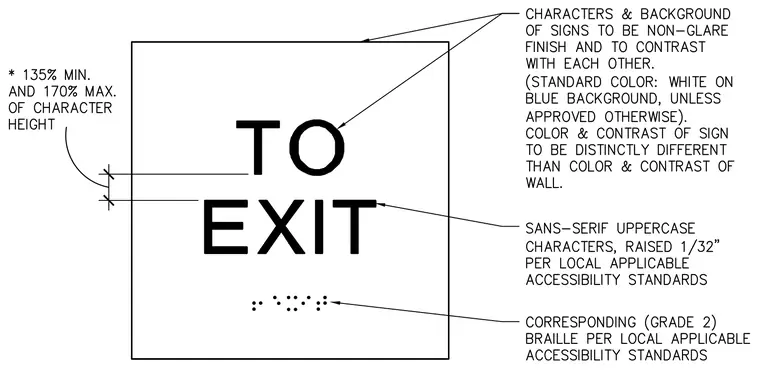

Tactile exit sign featuring sans-serif uppercase characters raised one-thirty-second of an inch per local accessibility standards, accompanied by corresponding Grade 2 Braille dots below. Character height and spacing require a minimum of one hundred thirty-five percent and a maximum of one hundred seventy percent of the character height. Both characters and background require a non-glare finish contrasting with each other, utilizing a standard white on blue color scheme unless approved otherwise. Color and contrast of the sign must be distinctly different from the supporting wall.
