The assembly consists of a hollow metal frame anchored to a metal stud wall, which requires double studs at all jamb locations. The wall assembly includes insulation where specified by partition details and extends into the frame profile. The door leaf is installed within the frame, with silencers or gasketing provided as indicated in the door schedule. The frame profile is sized according to the door schedule, and the overall wall construction is referenced to specific plan and section details.
Text on the drawing

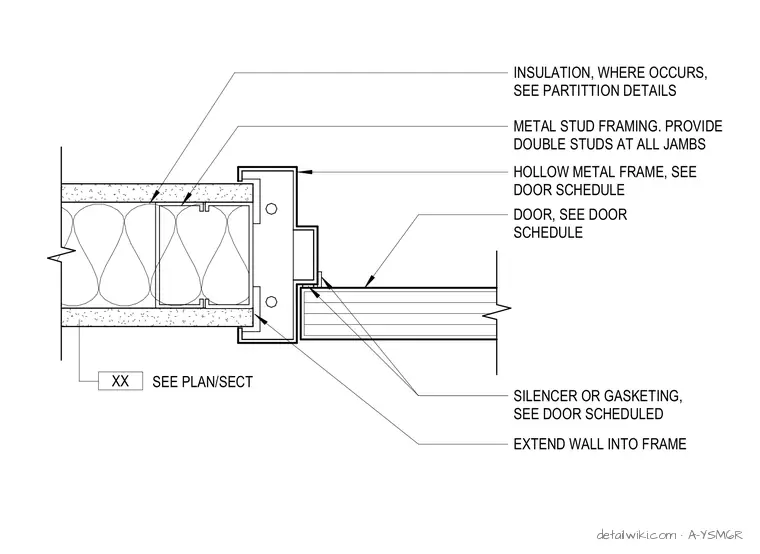

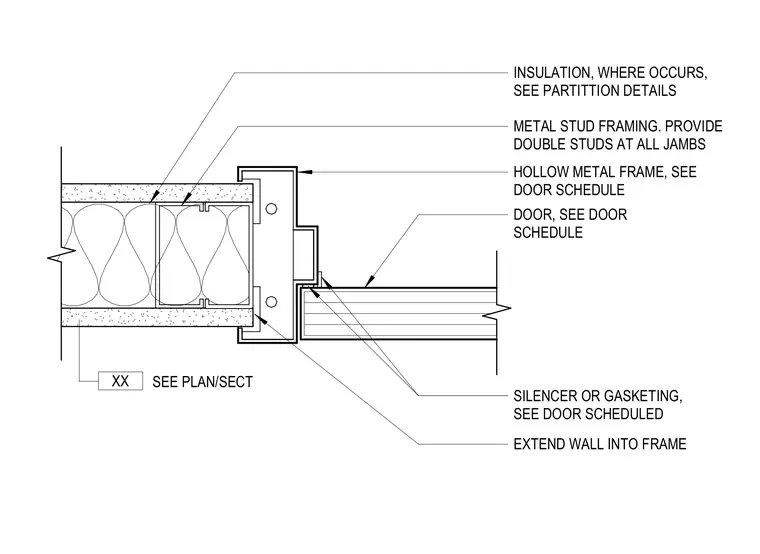

HOLLOW METAL FRAME, SEE DOOR SCHEDULE METAL STUD FRAMING. PROVIDE DOUBLE STUDS AT ALL JAMBS EXTEND WALL INTO FRAME SILENCER OR GASKETING, SEE DOOR SCHEDULED DOOR, SEE DOOR SCHEDULE INSULATION, WHERE OCCURS, SEE PARTITTION DETAILS SEE PLAN/SECT XX
