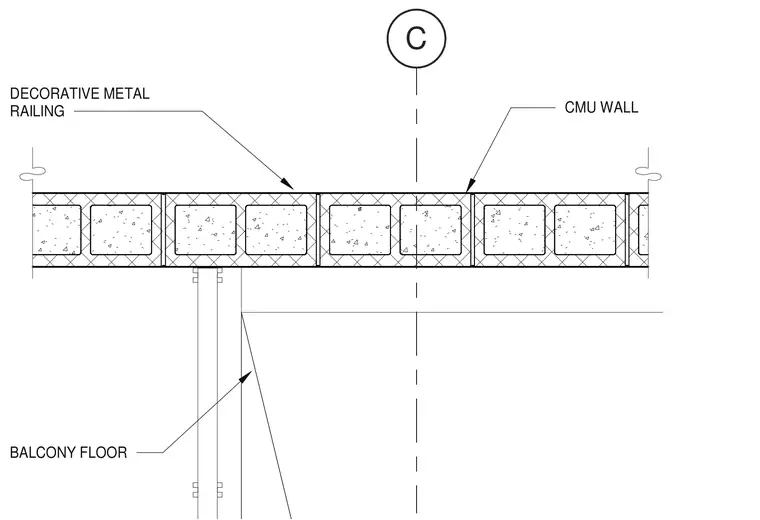

A decorative metal railing is anchored along the exterior face of a concrete masonry unit wall adjacent to a balcony floor. The assembly coordinates the junction between the masonry wall structure and the projecting balcony slab.
