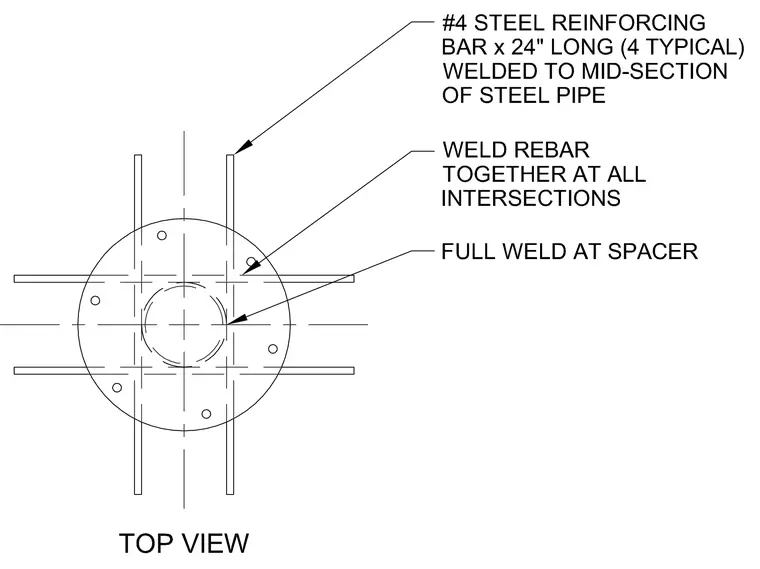

Four number four steel reinforcing bars twenty-four inches long are welded to the mid-section of a central steel pipe. The rebar components are welded together at all intersecting points around the perimeter. A full weld connects the assembly at the central spacer.
