A ceiling speaker is mounted to a tile bridge per the manufacturer requirements for a maximum weight of twenty pounds. The speaker assembly sits within a suspended ceiling grid. A twelve-gauge tie wire connects the tile bridge to the structure above for supplementary support.

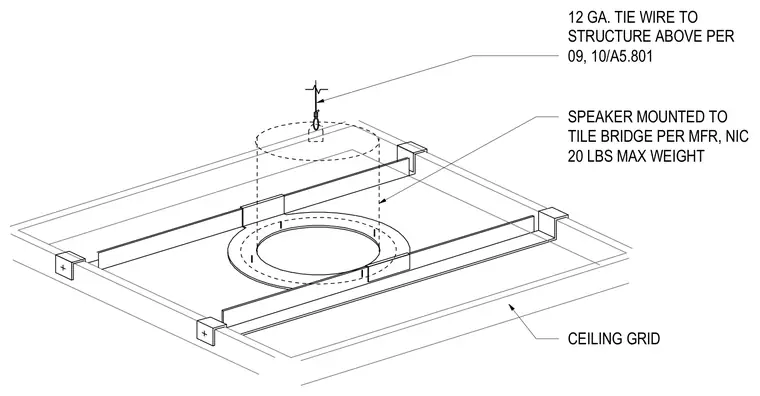

CEILING GRID SPEAKER MOUNTED TO TILE BRIDGE PER MFR, NIC 20 LBS MAX WEIGHT 12 GA. TIE WIRE TO STRUCTURE ABOVE PER 09, 10/A5.801
