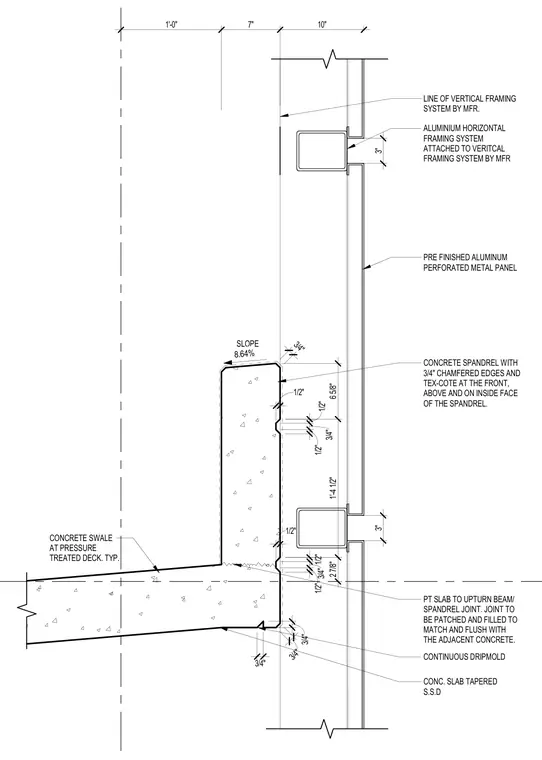

A concrete spandrel beam and post-tensioned slab junction supports a prefinished aluminum perforated metal panel façade system. The assembly features a three-inch aluminum horizontal framing system attached to a vertical framing system by the manufacturer. The concrete spandrel includes three-quarter-inch chamfered edges and a Tex-Cote finish on the front, top, and inside faces. The post-tensioned slab-to-upturn beam spandrel joint is patched and filled to match and flush with the adjacent concrete, complete with a continuous dripmold and tapered concrete slab. A concrete swale at the pressure-treated deck slopes typically at 8.64 percent.
PRE FINISHED ALUMINUM PERFORATED METAL PANEL 3" ALUMINIUM HORIZONTAL FRAMING SYSTEM ATTACHED TO VERITCAL FRAMING SYSTEM BY MFR 3" CONC. SLAB TAPERED S.S.D CONTINUOUS DRIPMOLD PT SLAB TO UPTURN BEAM/ SPANDREL JOINT. JOINT TO BE PATCHED AND FILLED TO MATCH AND FLUSH WITH THE ADJACENT CONCRETE. CONCRETE SPANDREL WITH 3/4" CHAMFERED EDGES AND TEX-COTE AT THE FRONT, ABOVE AND ON INSIDE FACE OF THE SPANDREL. CONCRETE SWALE AT PRESSURE TREATED DECK. TYP. SLOPE 8.64% 1/2" 1/2" 3/4" 1/2" 3/4" 3/4" 3/4" 1/2" 1/2" 3/4" 1/2" 2 7/8" 1'-4 1/2" 6 5/8" 1'-0" 7" 10" 3/4" LINE OF VERTICAL FRAMING SYSTEM BY MFR.
