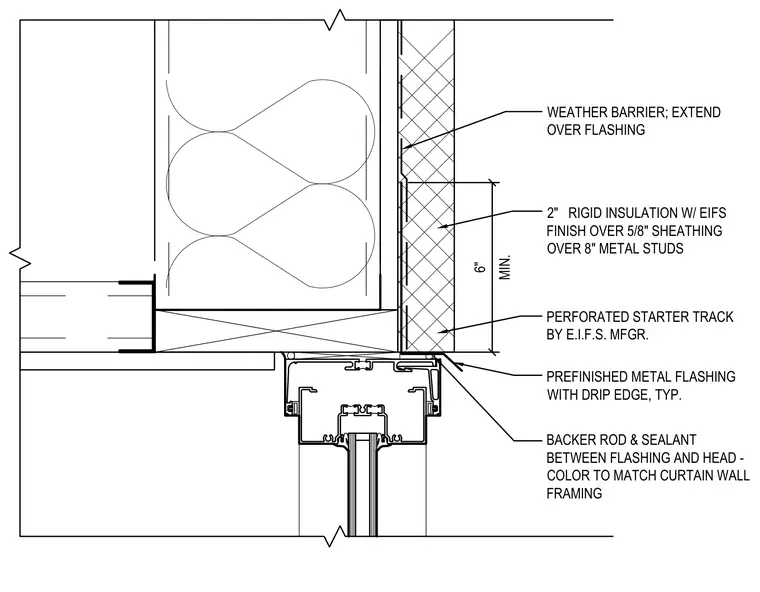

The EIFS wall assembly comprises two inches of rigid insulation and an EIFS finish over five-eighths inch sheathing and eight-inch metal studs, with a weather barrier extending down over the metal flashing. A perforated starter track sits above a prefinished metal flashing featuring a drip edge. Backer rod and sealant are applied between the flashing and the head, color-matched to the curtain wall framing.
WEATHER BARRIER; EXTEND OVER FLASHING 2" RIGID INSULATION W/ EIFS FINISH OVER 5/8" SHEATHING OVER 8" METAL STUDS PERFORATED STARTER TRACK BY E.I.F.S. MFGR. PREFINISHED METAL FLASHING WITH DRIP EDGE, TYP. BACKER ROD & SEALANT BETWEEN FLASHING AND HEAD - COLOR TO MATCH CURTAIN WALL FRAMING 6" MIN.
