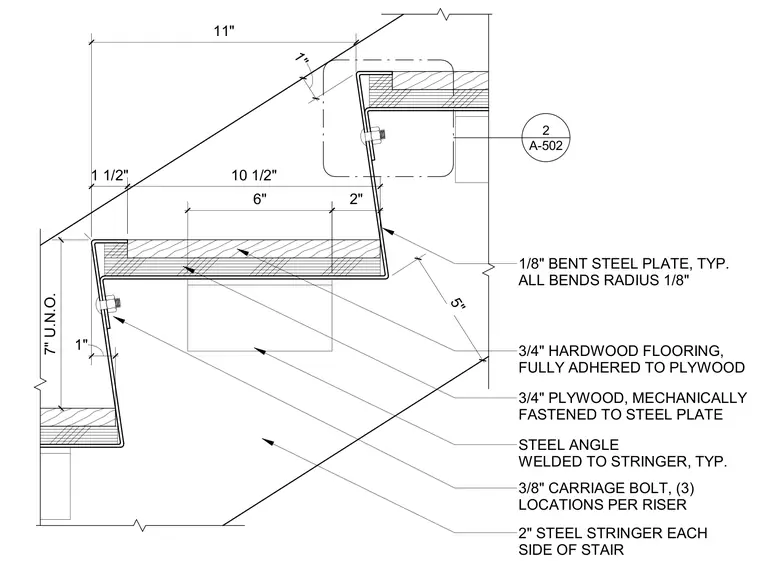

A typical stair tread and riser assembly is formed from one-eighth-inch bent steel plate with one-eighth-inch radius bends. Three-quarter-inch plywood is mechanically fastened to the steel plate, and three-quarter-inch hardwood flooring is fully adhered to the plywood. The assembly is supported by steel angles welded to a two-inch steel stringer on each side of the stair. Three-eighth-inch carriage bolts secure the riser plate assembly in three locations per riser.
1/8" BENT STEEL PLATE, TYP. ALL BENDS RADIUS 1/8" 3/4" PLYWOOD, MECHANICALLY FASTENED TO STEEL PLATE 3/4" HARDWOOD FLOORING, FULLY ADHERED TO PLYWOOD A-502 2 1" 1 1/2" 10 1/2" 3/8" CARRIAGE BOLT, (3) LOCATIONS PER RISER 1" STEEL ANGLE WELDED TO STRINGER, TYP. 2" STEEL STRINGER EACH SIDE OF STAIR 5" 11" 7" U.N.O. 6" 2"
