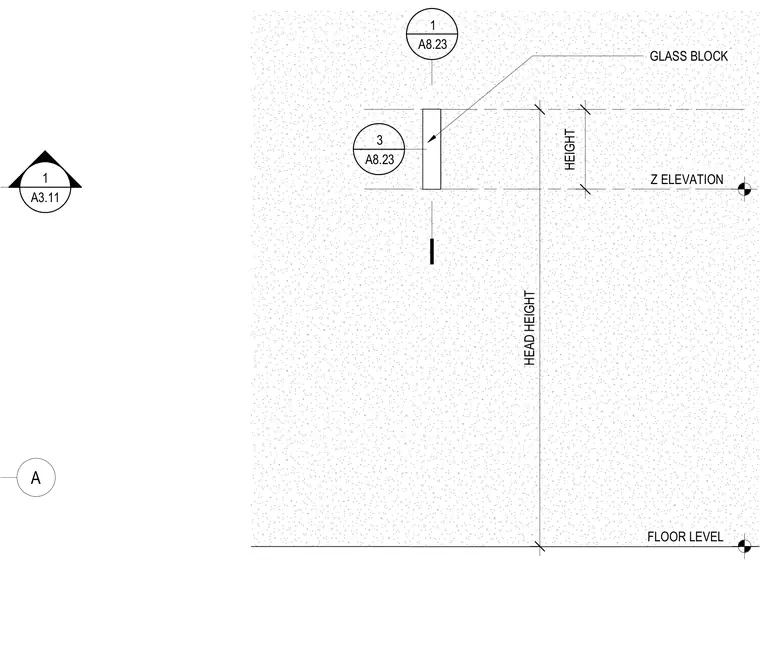

Glass block assembly showing head height dimensions measured from the floor level up to the unit. The drawing indicates the vertical span and positioning relative to the floor level and a reference elevation datum.
