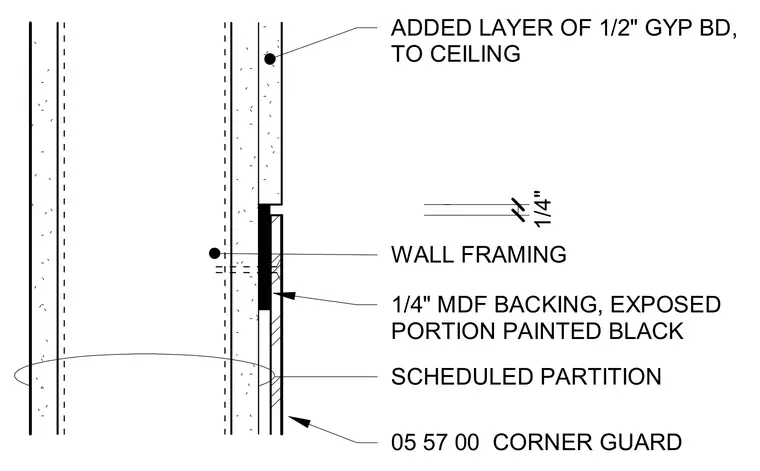

This interior wall detail shows a corner guard terminating at the ceiling against a scheduled partition. The assembly includes an added layer of one-half-inch gypsum board extending up to the ceiling over the wall framing. A one-quarter-inch medium-density fiberboard backing supports the corner guard, with the exposed portion painted black. The corner guard itself is specified under section 05 57 00.
SCHEDULED PARTITION 05 57 00 CORNER GUARD WALL FRAMING 1/4" 1/4" MDF BACKING, EXPOSED PORTION PAINTED BLACK ADDED LAYER OF 1/2" GYP BD, TO CEILING
