Architectural · A-YRVCZ

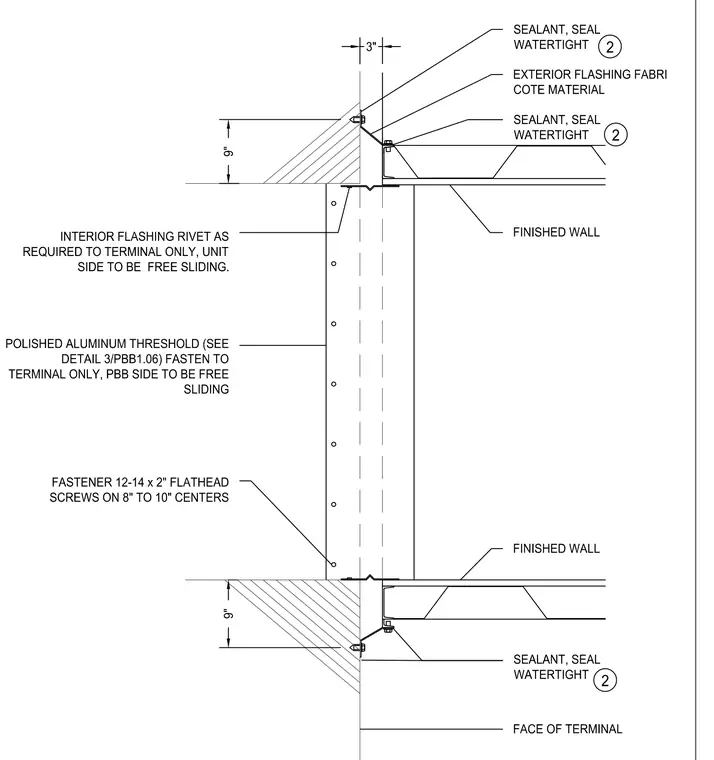

Passenger Boarding Bridge Sliding Wall and Threshold Detail

Materials

Elements

About this detail

The sliding connection between a terminal building wall and a passenger boarding bridge includes a free-sliding side and a fixed terminal side. A polished aluminum threshold bridges the gap, secured with 12-14 by 2-inch flathead screws spaced on 8-inch to 10-inch centers. Exterior flashing utilizing Fabri Cote material and interior flashing secured with rivets maintain free-sliding movement on the unit side while remaining fastened only to the terminal. Continuous watertight sealant beads are applied at all flashing junctions and weather barriers.
