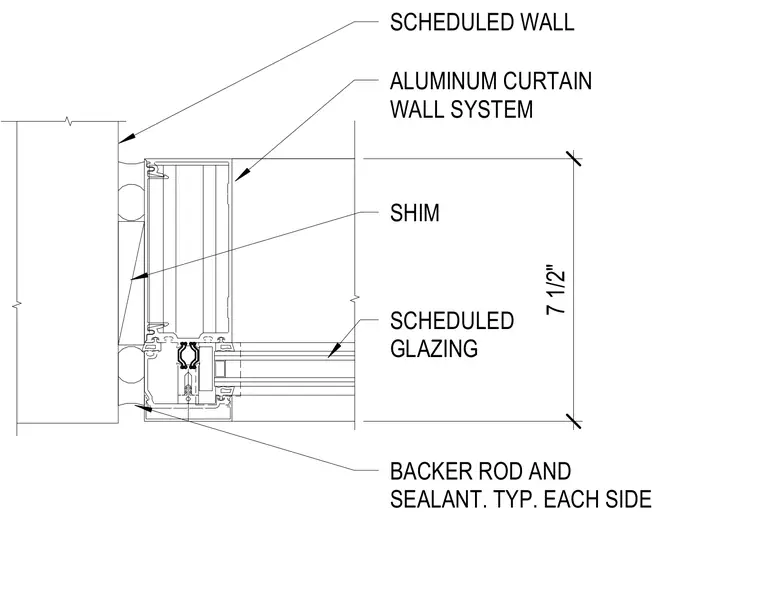

An aluminum curtain wall system is anchored against a scheduled wall with shims placed along the jamb. Scheduled glazing is installed within the framing members. The perimeter joint is sealed with backer rod and sealant typically on each side.
SCHEDULED WALL ALUMINUM CURTAIN WALL SYSTEM SCHEDULED GLAZING BACKER ROD AND SEALANT. TYP. EACH SIDE 7 1/2" SHIM
