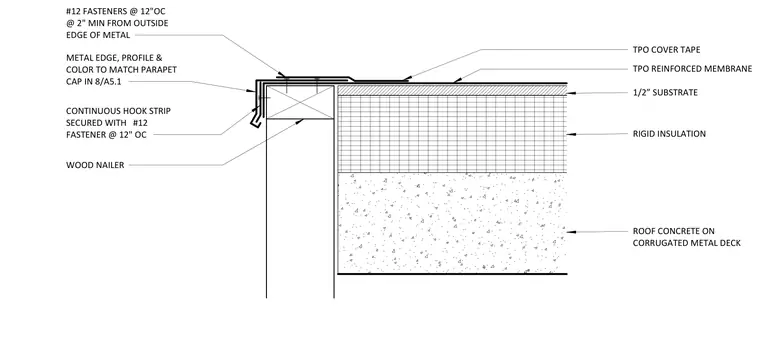

A roof edge assembly bears on a roof concrete slab poured over a corrugated metal deck. Rigid insulation supports a one-half inch substrate beneath a thermoplastic polyolefin reinforced membrane. A wood nailer anchors at the perimeter, receiving a continuous hook strip secured with number twelve fasteners at twelve inches on center. A metal edge profile, matched in color to the parapet cap, fastens with number twelve fasteners at twelve inches on center placed at a minimum of two inches from the outside edge of the metal. A thermoplastic polyolefin cover tape seals the membrane termination.
ROOF CONCRETE ON CORRUGATED METAL DECK RIGID INSULATION TPO REINFORCED MEMBRANE 1/2” SUBSTRATE TPO COVER TAPE WOOD NAILER CONTINUOUS HOOK STRIP SECURED WITH #12 FASTENER @ 12" OC METAL EDGE, PROFILE & COLOR TO MATCH PARAPET CAP IN 8/A5.1 #12 FASTENERS @ 12"OC @ 2" MIN FROM OUTSIDE EDGE OF METAL
