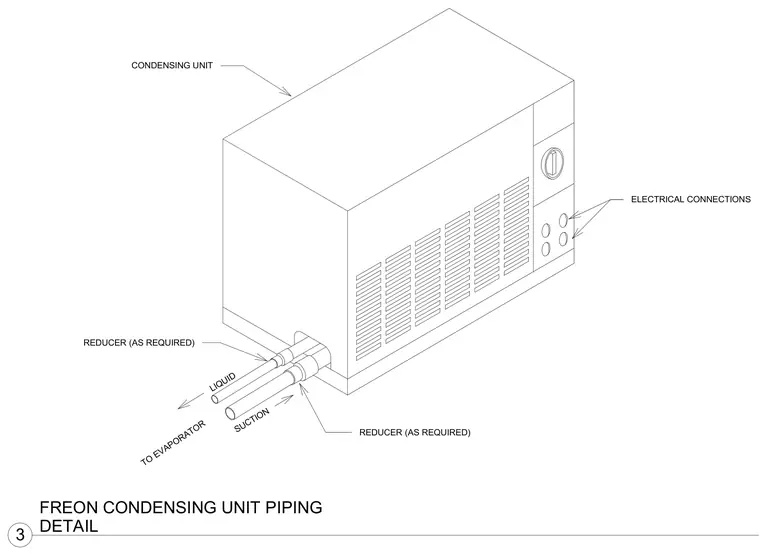

A freon condensing unit features electrical connections and piping extending to the evaporator. Suction and liquid lines route from the unit using reducers as required.
ELECTRICAL CONNECTIONS REDUCER (AS REQUIRED) REDUCER (AS REQUIRED) TO EVAPORATOR SUCTION LIQUID CONDENSING UNIT 3 FREON CONDENSING UNIT PIPING DETAIL
