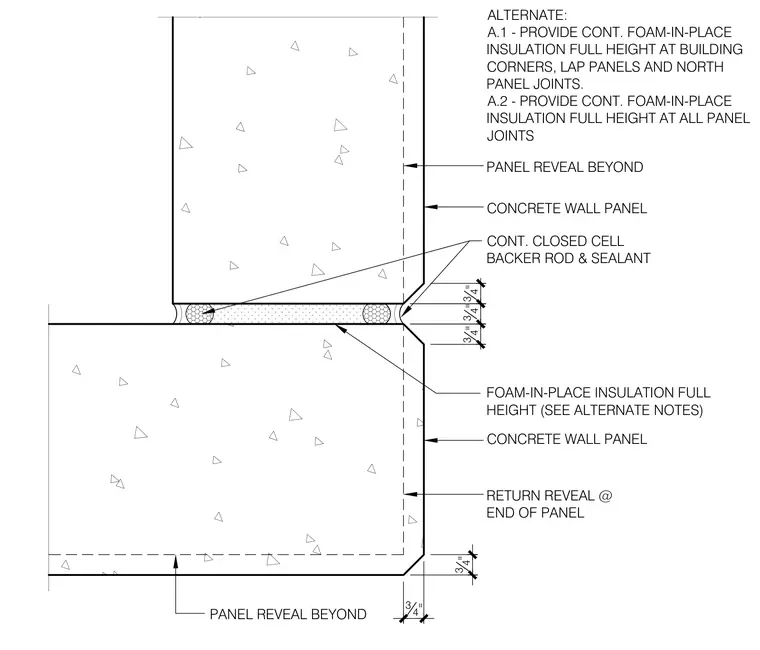

Precast concrete wall panels meet at a corner joint featuring a continuous closed-cell backer rod and sealant at the exterior face. Continuous foam-in-place insulation fills the joint cavity full height, with alternates specifying insulation at building corners, lap panels, and north panel joints. Panel reveals and return reveals are incorporated at the ends of the panels.
CONCRETE WALL PANEL 3 4 " 3 4 " 3 4 " CONT. CLOSED CELL BACKER ROD & SEALANT 3 4 " 3 4 " CONCRETE WALL PANEL PANEL REVEAL BEYOND RETURN REVEAL @ END OF PANEL PANEL REVEAL BEYOND ALTERNATE: A.1 - PROVIDE CONT. FOAM-IN-PLACE INSULATION FULL HEIGHT AT BUILDING CORNERS, LAP PANELS AND NORTH PANEL JOINTS. A.2 - PROVIDE CONT. FOAM-IN-PLACE INSULATION FULL HEIGHT AT ALL PANEL JOINTS FOAM-IN-PLACE INSULATION FULL HEIGHT (SEE ALTERNATE NOTES)
