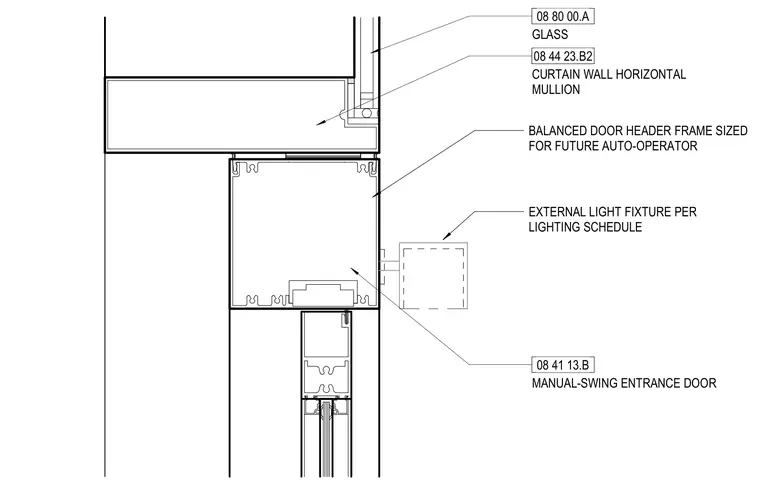

A balanced door header frame sized for a future auto-operator sits below a curtain wall horizontal mullion and glass assembly. An external light fixture mounts directly to the frame per the lighting schedule. A manual-swing entrance door profile aligns below the header framework.
08 41 13.B MANUAL-SWING ENTRANCE DOOR 08 80 00.A GLASS 08 44 23.B2 CURTAIN WALL HORIZONTAL MULLION EXTERNAL LIGHT FIXTURE PER LIGHTING SCHEDULE BALANCED DOOR HEADER FRAME SIZED FOR FUTURE AUTO-OPERATOR
