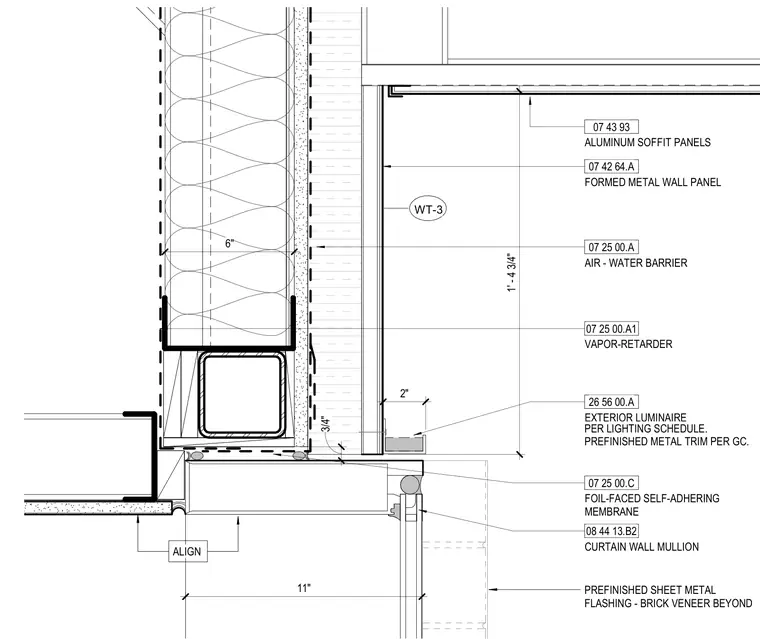

A vertical section detail connects the curtain wall head with an exterior soffit and brick veneer condition. An aluminum curtain wall mullion aligns with a foil-faced self-adhering membrane and an air-water barrier with an integrated vapor retarder. Aluminum soffit panels and formed metal wall panels terminate near the head with a prefinished metal trim and a two-inch clearance for an exterior luminaire sized per the lighting schedule. Prefinished sheet metal flashing extends past the brick veneer located beyond.
11" 2" 1' - 4 3/4" ALIGN 08 44 13.B2 CURTAIN WALL MULLION 07 25 00.C FOIL-FACED SELF-ADHERING MEMBRANE 07 25 00.A AIR - WATER BARRIER 07 25 00.A1 VAPOR-RETARDER 07 43 93 ALUMINUM SOFFIT PANELS 07 42 64.A FORMED METAL WALL PANEL 26 56 00.A EXTERIOR LUMINAIRE 6" PER LIGHTING SCHEDULE. PREFINISHED METAL TRIM PER GC. PREFINISHED SHEET METAL FLASHING - BRICK VENEER BEYOND 3/4" WT-3
