A-YR5Z3 — Tower Detail Three (Upward View)

Architectural · A-YR5Z3

Tower Detail Three (Upward View)

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Metal (misc.)Steel Stone Timber / Wood

Elements

Bracing Connections / Plates Roofs

Connections

Bracing Connection HSS Connection

Text on the drawing

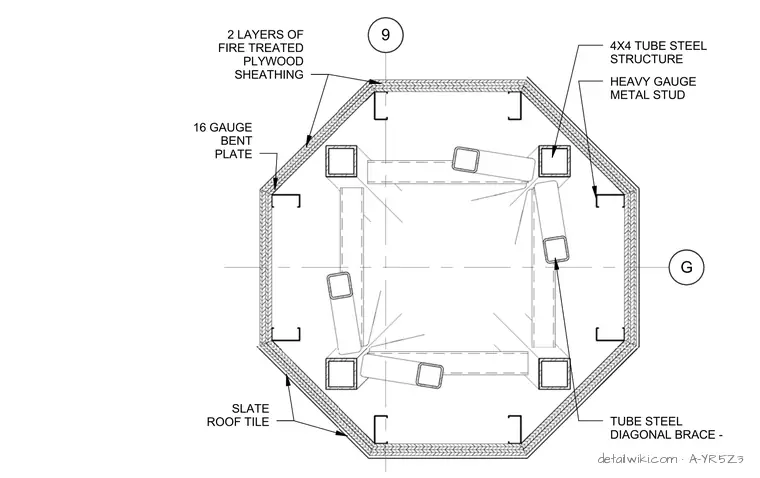

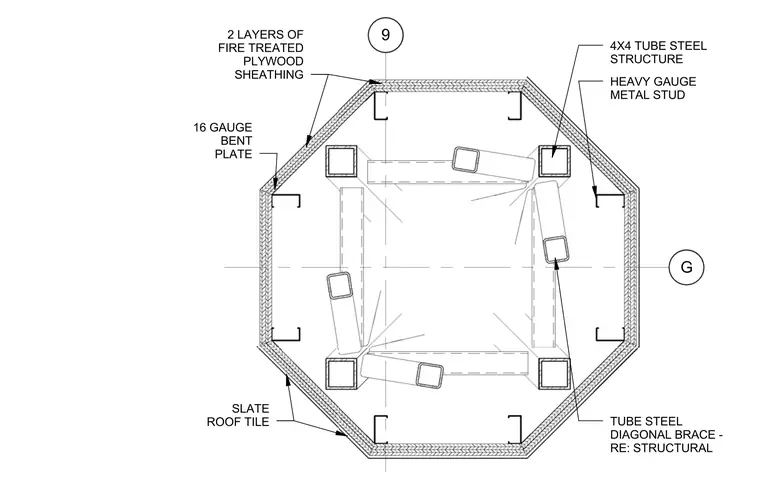

9 G 16 GAUGE BENT PLATE 2 LAYERS OF FIRE TREATED PLYWOOD SHEATHING HEAVY GAUGE METAL STUD 4X4 TUBE STEEL STRUCTURE SLATE ROOF TILE TUBE STEEL DIAGONAL BRACE - RE: STRUCTURAL
