Architectural · A-YR2MG

Upper Cabinet Assembly at Microwave Space

Materials

Elements

Doors Ceilings Millwork / Casework Roof / Floor Openings

About this detail

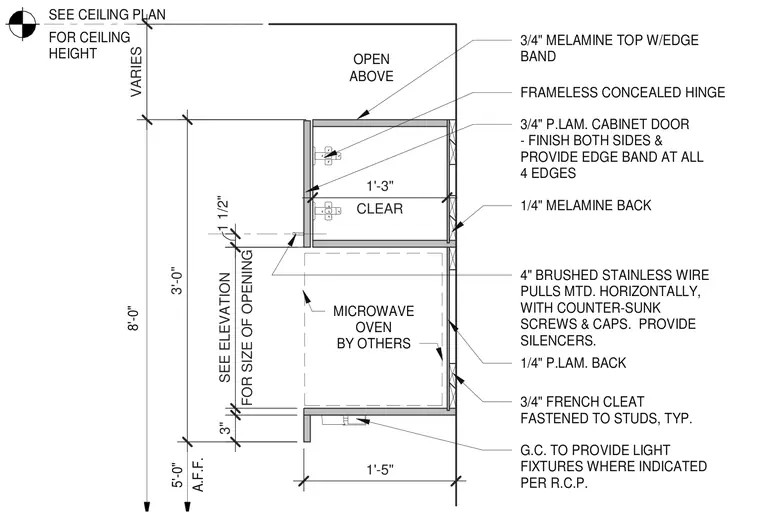

This wall-mounted millwork assembly details upper cabinets constructed from three-quarter-inch melamine top and back panels with a three-quarter-inch plastic laminate door finished on both sides and edge-banded on all four edges. The cabinet is supported by a three-quarter-inch French cleat fastened directly to the wall studs. Hardware includes frameless concealed hinges, cabinet door silencers, and four-inch brushed stainless steel wire pulls mounted horizontally with countersunk screws and caps. Below the upper cabinet, an open niche accommodates a microwave oven by others, with general contractor-provided light fixtures indicated per the reflected ceiling plan. Vertical dimensions establish the cabinet bottom at five feet above finished floor, a three-foot vertical clearance to the top, and an interior cabinet depth of one foot, three inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
