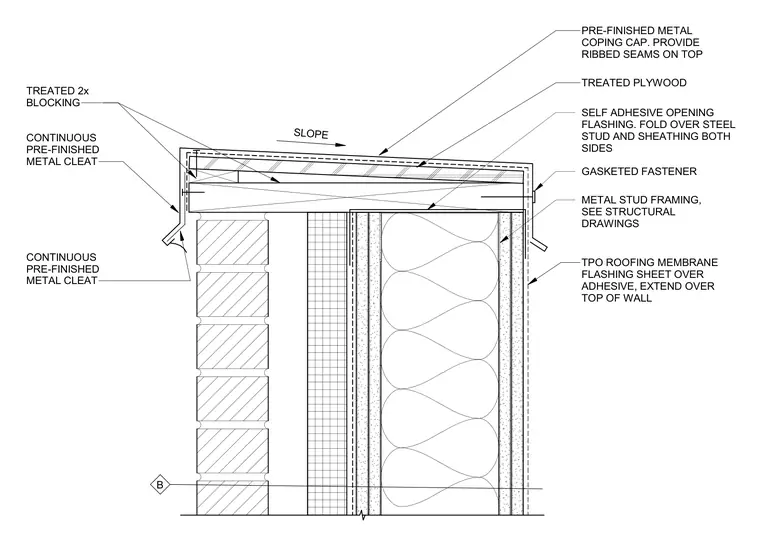

A pre-finished metal coping cap with ribbed seams slopes over treated wood blocking and treated plywood. Self-adhesive opening flashing folds over the steel stud framing and exterior sheathing on both sides beneath the blocking. The TPO roofing membrane flashing sheet extends over the top of the wall beneath the coping. Continuous pre-finished metal cleats secure the coping edges, fastened with gasketed fasteners.
B TPO ROOFING MEMBRANE FLASHING SHEET OVER ADHESIVE, EXTEND OVER TOP OF WALL SLOPE GASKETED FASTENER METAL STUD FRAMING, SEE STRUCTURAL DRAWINGS TREATED 2x BLOCKING PRE-FINISHED METAL COPING CAP. PROVIDE RIBBED SEAMS ON TOP CONTINUOUS PRE-FINISHED METAL CLEAT TREATED PLYWOOD SELF ADHESIVE OPENING FLASHING. FOLD OVER STEEL STUD AND SHEATHING BOTH SIDES CONTINUOUS PRE-FINISHED METAL CLEAT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
