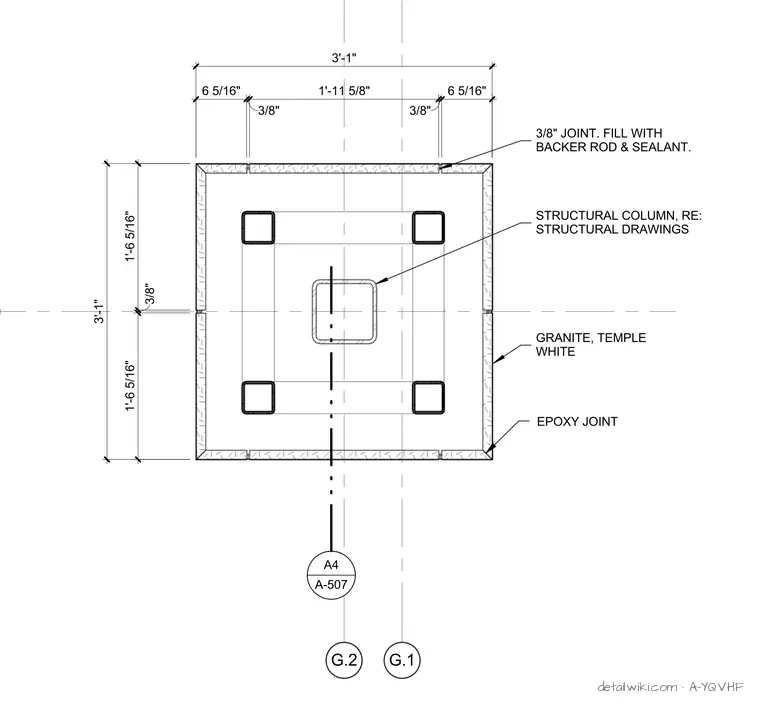

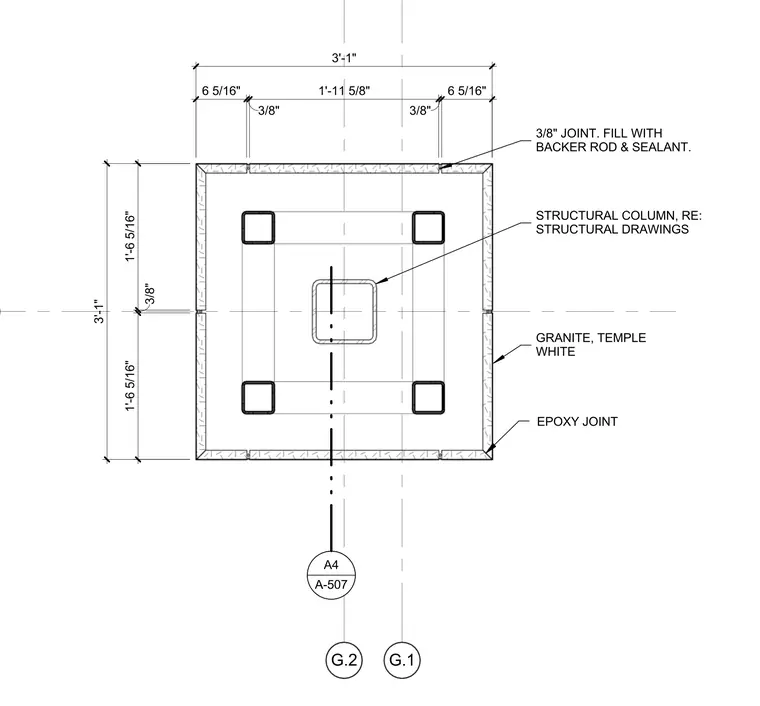

A structural steel column is enclosed within a 3'-1" square granite cladding assembly composed of Temple White granite panels. Vertical joints measure 3/8 inches and are filled with backer rod and sealant, while corner junctions utilize epoxy joints. The overall footprint measures 3'-1" by 3'-1" with panel segments dimensioned at 1'-6 5/16" and 1'-11 5/8".
G.1 G.2 A4 A-507 GRANITE, TEMPLE WHITE EPOXY JOINT 6 5/16" 3/8" 1'-11 5/8" 3/8" 6 5/16" 3'-1" 1'-6 5/16" 3/8" 1'-6 5/16" 3'-1" STRUCTURAL COLUMN, RE: STRUCTURAL DRAWINGS 3/8" JOINT. FILL WITH BACKER ROD & SEALANT.
