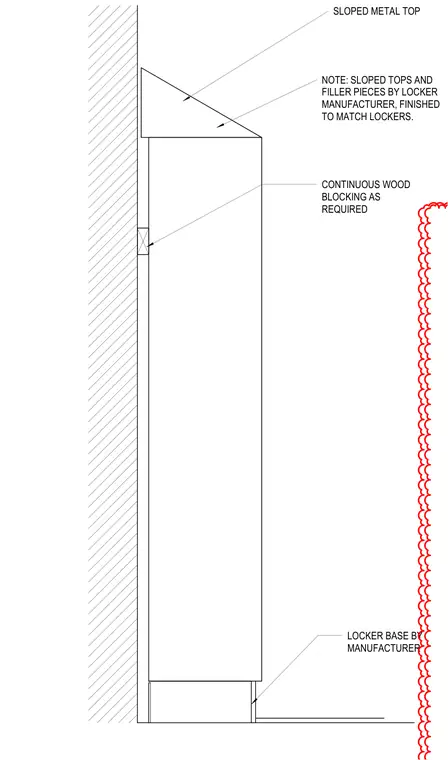

A locker unit is mounted against a wall with continuous wood blocking installed as required. A sloped metal top and filler pieces are provided by the locker manufacturer and finished to match the lockers. A locker base is also provided by the manufacturer at the floor level.
SLOPED METAL TOP CONTINUOUS WOOD BLOCKING AS REQUIRED NOTE: SLOPED TOPS AND FILLER PIECES BY LOCKER MANUFACTURER, FINISHED TO MATCH LOCKERS. LOCKER BASE BY MANUFACTURER
