A typical Z-metal flashing component features a sloped leg and verified-in-field dimensions. The profile includes a one-inch vertical leg, a three-inch vertical leg with a ten-degree slope, a one-and-seven-sixteenth-inch dimension verify-in-field segment, and a half-inch hemmed or bent edge. Z-metal end closures are required at each end of the run.

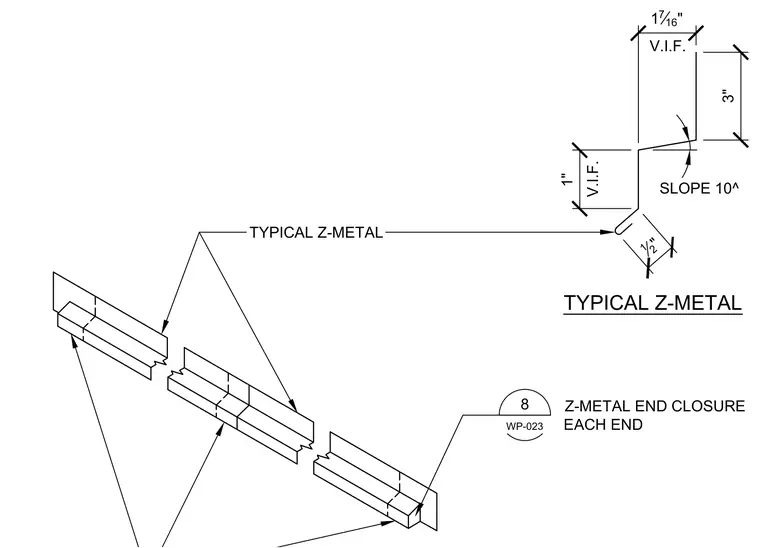

8 WP-023 3" 1 7 16 " V.I.F. 1" V.I.F. 1 2 " TYPICAL Z-METAL TYPICAL Z-METAL Z-METAL END CLOSURE EACH END SLOPE 10^
