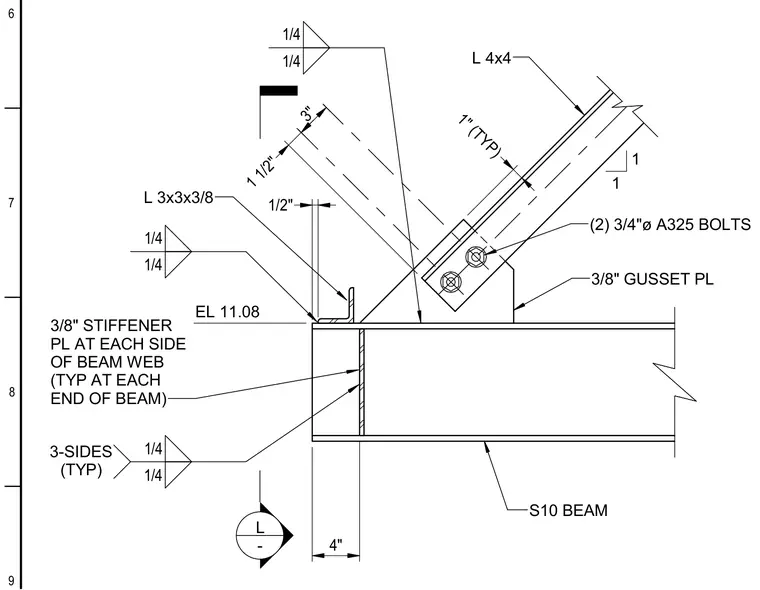

An S10 steel beam supports a structural steel brace formed by an L 4x4 angle connected with two three-quarter-inch diameter A325 bolts to a three-eighths-inch gusset plate. The gusset plate is welded to the top flange of the beam with quarter-inch fillet welds on three sides. Three-eighths-inch stiffener plates are welded to each side of the beam web at each end with quarter-inch fillet welds. An L 3x3x3/8 angle sits on the beam flange with a one-half-inch offset.
S10 BEAM 4" EL 11.08 1/2" 1 1/2" 3" 1" (TYP) 3/8" STIFFENER PL AT EACH SIDE OF BEAM WEB (TYP AT EACH END OF BEAM) 1/4 1/4 L 4x4 3/8" GUSSET PL 1/4 1/4 1/4 1/4 3-SIDES (TYP) L 3x3x3/8 (2) 3/4"ø A325 BOLTS L - 1 1 9 8 7 6
